NightRide
640 w/ Ethernet
NightRide
640 w/ Ethernet
Regular price
USD $4,250
NRR640-13E

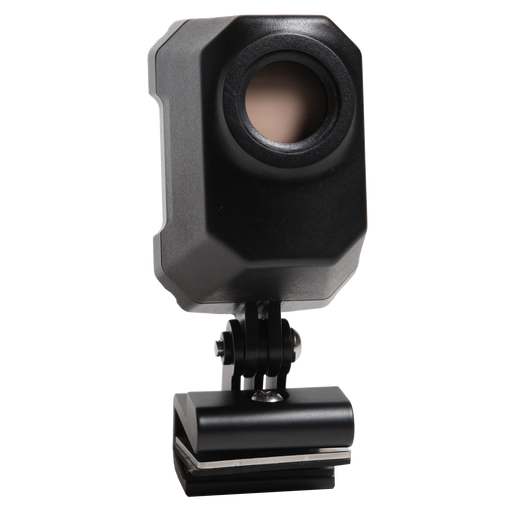

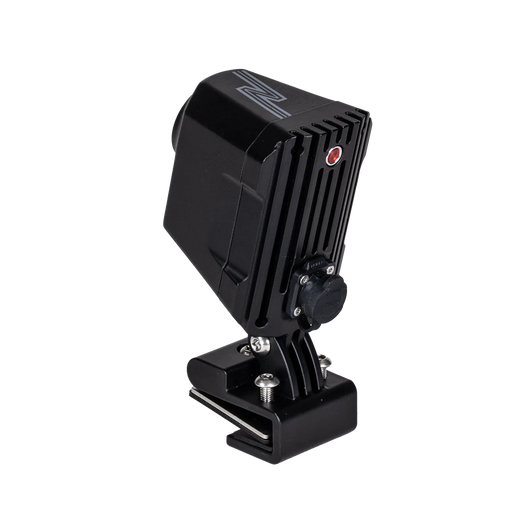

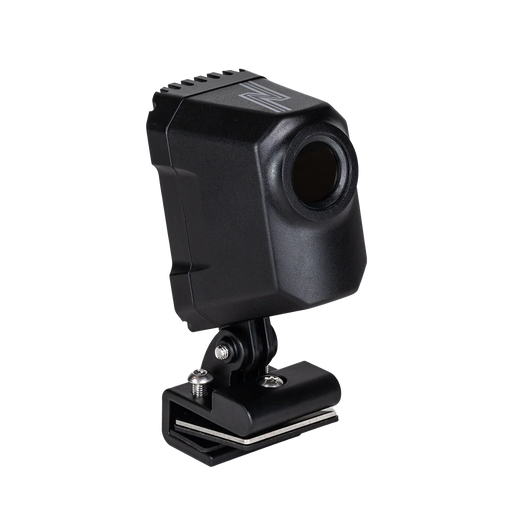

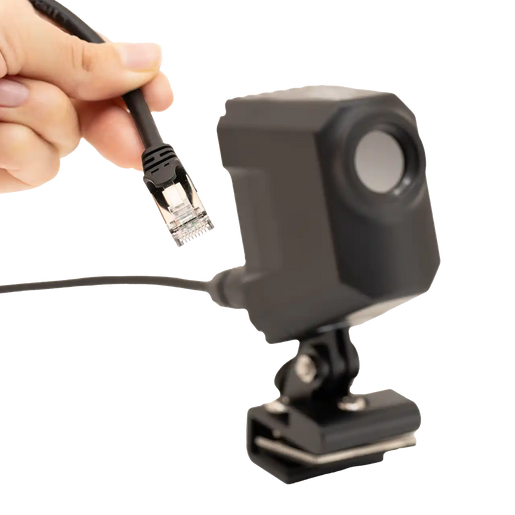

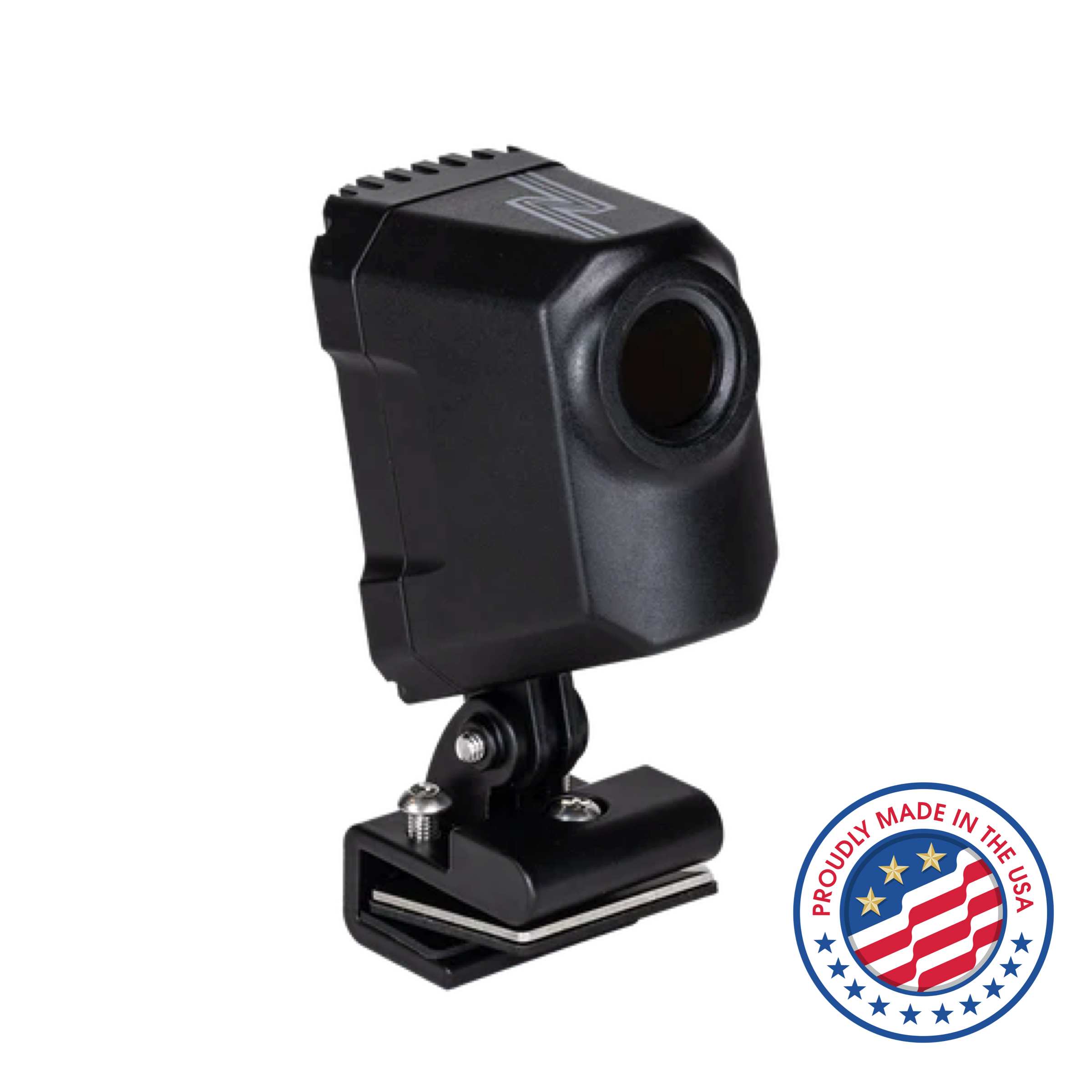

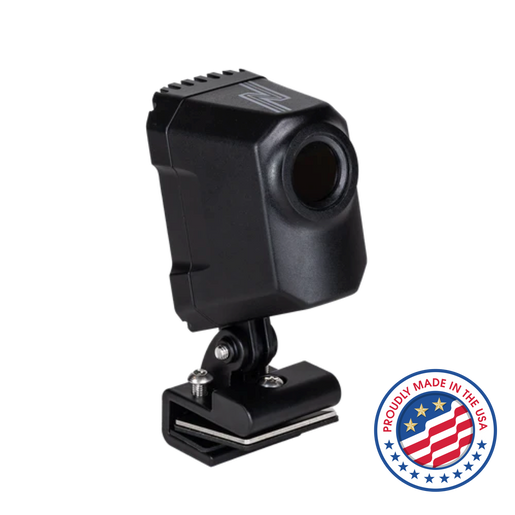

Featuring a 640 x 512 uncooled micro-bolometer and a 13mm lens, the Trailblazer 640 detects heat signatures up to 660 yards in fog, rain, snow, smoke, or complete darkness. Installation is quick with the included hood mount, while Wi-Fi hotspot and Ethernet provide flexible display options. The unit supports always-on or event-based recording and can also be deployed on foot with a GoPro helmet mount or backpack when paired with an auxiliary battery pack. Built to withstand harsh conditions, the system is IP69 sealed, consumes just 4W, and operates reliably at 25hz.
Specifications
- Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
- Weight: 6 ounces
- Operating Temp: -40°F to +140°F
- Sealed Design: IP69 rated
- Sensor Type: 640 x 512 uncooled micro-bolometer
- Lens: 13mm
- Field of View: 28° (H)
- Frame Rate: 25hz
- Power Consumption: 4W
- Power Requirements: 12–16 VDC
Main Features
- High-resolution 640 x 512 thermal imaging
- Vehicle Hood Mount included
- Wi-Fi hotspot or Ethernet connectivity
- Portable use with GoPro mount + auxiliary battery pack (not included)
- Always recording or event-based recording
- Rugged IP69 sealed design
Range
| Detection | Recognition | Identification |
|---|---|---|
| 660 yards | 180 yards | 90 yards |
Accessories
- Standard Hood Mount
- Hood Mount Tools and Accessories
- Passive PoE Cable
- Passive PoE Injector Adapter
- Cigarette Plug to Barrel Cable
- Alligator to 6-Pin Cable
- Ethernet Cable
- USB-C and Lightning Adapters
- Velcro Ties (x4)
- Ring Connections
Full Situational Awareness
Not Certain Which NightRide to Choose?
*Table scrolls horizontally
| Model | Resolution | Detection* (in Yards) | Recognition* (in Yards) | Identification* (in Yards) | Field of View | WiFi Frequency to Display | Wired via Ethernet | Remote Control | Mounting | Sample Use Cases |
| NightRide Trailblazer | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Trailblazer w Ethernet | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Trailblazer HighRes 640 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Sentinel | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
| NightRide Sentinel 640-13 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
| NightRide PRO-SL (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide PRO-SL w Ethernet (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide PRO-SL 640 (Ring or Cableless) | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide 360 Classic 384-13 | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 Classic 384-19 | Standard | 660 | 180 | 90 | 19⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 Classic Telephoto 384-35 | Standard | 1200 | 330 | 165 | 10⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 High Res - 640-19/Plus 640-19 | High | 960 | 240 | 120 | 23⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 High Res Telephoto 640-35/Plus 640-35 | High | 1750 | 440 | 220 | 12⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
