NightRide

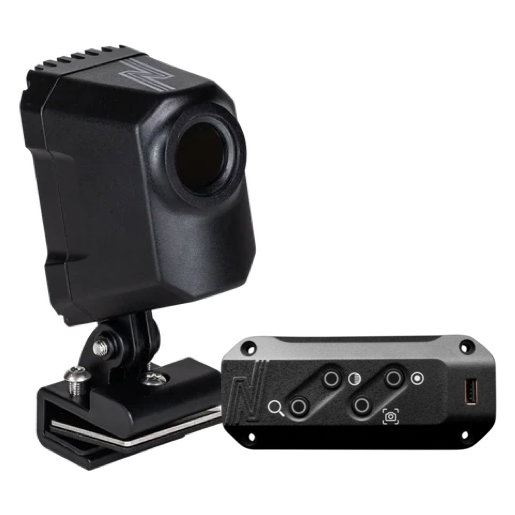

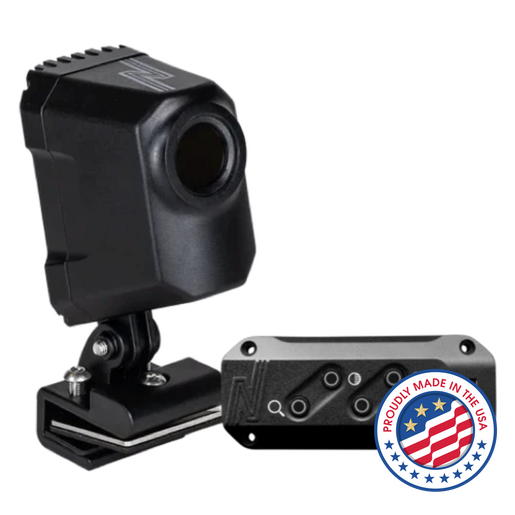

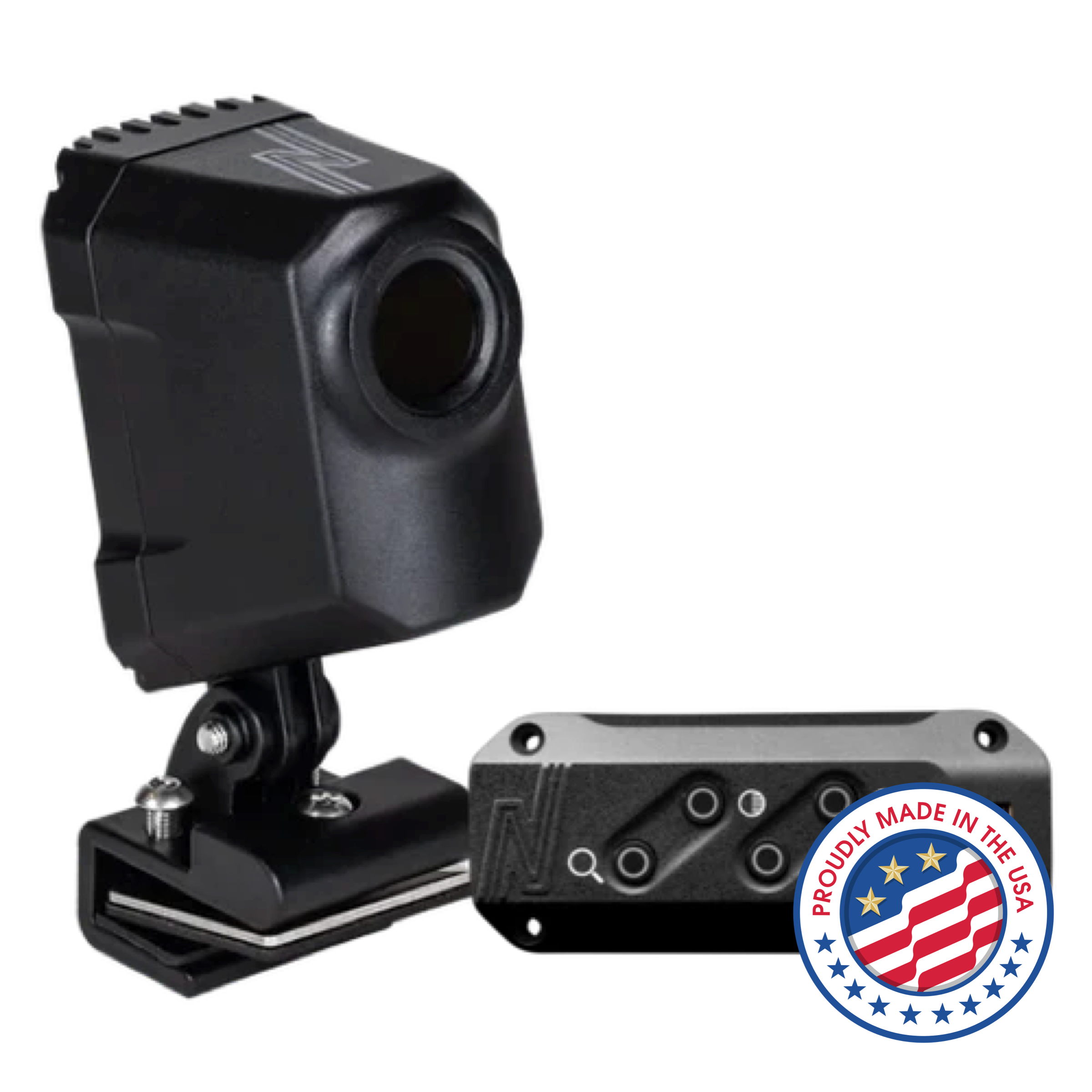

Trailblazer 640 USB w HDMI Controller
NightRide
Trailblazer 640 USB w HDMI Controller
Regular price
USD $4,575
NRTC640-U
Equipped with a 640 x 512 uncooled micro-bolometer and a 9mm lens, the Trailblazer 640 USB detects thermal signatures up to 660 yards away—even in total darkness, fog, snow, rain, or smoke. Installation is quick with the included hood mount, while USB-A 3.1 connectivity provides both power and streaming directly to a laptop or tablet. The unit supports always-on or event-based recording, consumes just 4W, and is sealed to IP69 standards to withstand the harshest conditions.
Specifications
- Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
- Weight: 6 ounces
- Operating Temp: -40°F to +140°F
- Sealed Design: IP69 rated
- Sensor Type: 640 x 512 uncooled micro-bolometer
- Lens: 9mm
- Field of View: 48° (H)
- Frame Rate: 30hz
- Power Consumption: 4W
- Power Requirements: 12 VDC power to Controller
Main Features
- High-resolution 640 x 512 thermal imaging
- Vehicle Hood Mount included
- 8” Monitor included
- USB to the Trailblazer - HDMI Controller, HDMI to a monitor
- Controller enables change of color palette, zoom and recording
- Snapshot or event-based recording
- Rugged IP69 sealed design
Range
| Detection | Recognition | Identification |
|---|---|---|
| 660 yards | 180 yards | 90 yards |
Accessories
- Standard Hood Mount
- Hood Mount Tools and Accessories
- USB Cable
- Trailblazer – HDMI Controller
- Velcro Ties (x4)
