NightRide

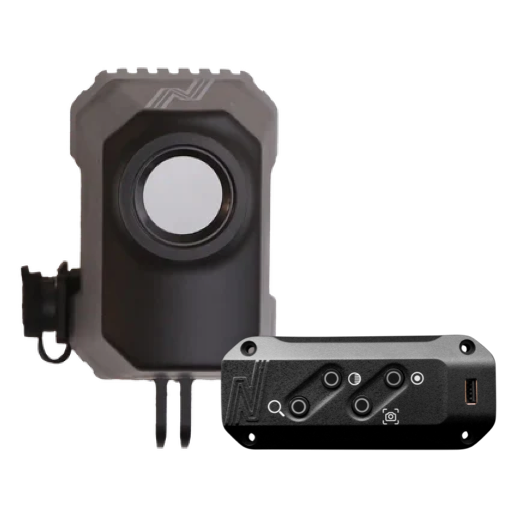

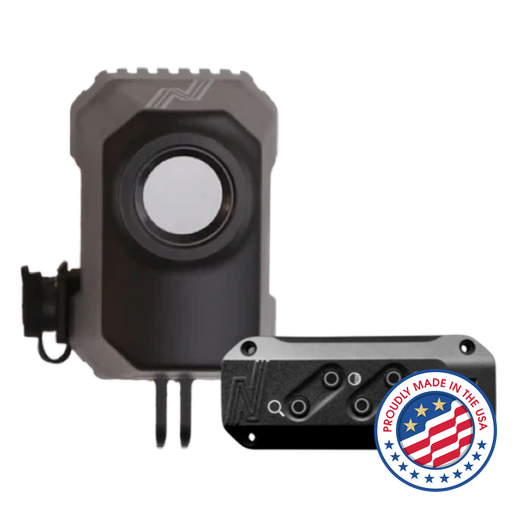

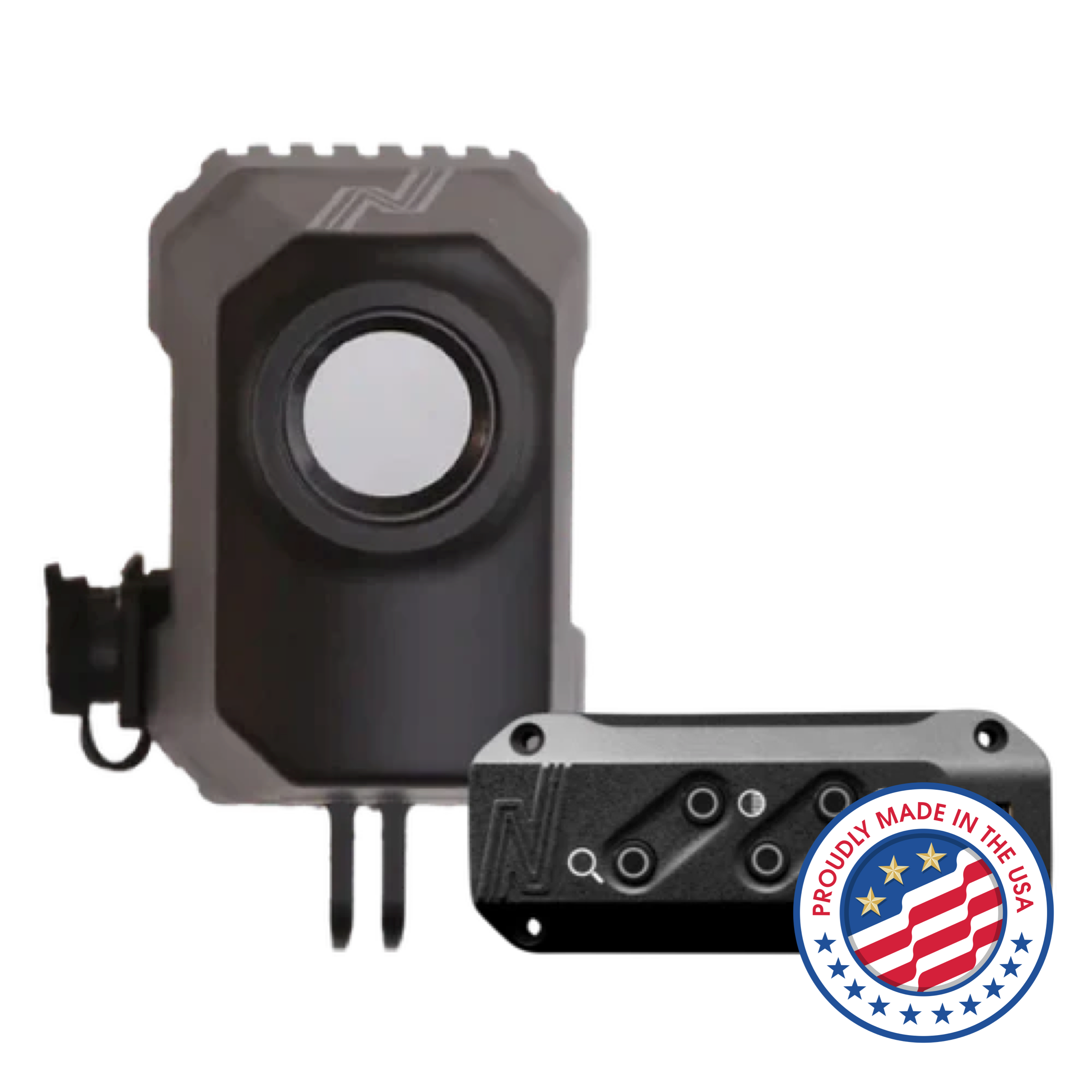

Trailblazer 640 Grille Mount - USB w HDMI Controller
NightRide
Trailblazer 640 Grille Mount - USB w HDMI Controller
Regular price
USD $4,145
NRTC640-GU
Featuring a 640 x 512 uncooled micro-bolometer and a 9mm lens, the Trailblazer 640 Grille Mount detects thermal signatures up to 660 yards away in fog, rain, snow, smoke, or complete darkness. It installs quickly using the included hood mount, while the 90° connector allows seamless integration behind the grille. Streaming and power are supplied directly via USB-A 3.1 to a Windows laptop or tablet. Supporting continuous or event-based recording, the system consumes just 4W while delivering smooth 30hz video. With IP69 sealing, it’s built to withstand extreme conditions and mission demands.
Specifications
- Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
- Weight: 6 ounces
- Operating Temp: -40°F to +140°F
- Sealed Design: IP69 rated
- Sensor Type: 640 x 512 uncooled micro-bolometer
- Lens: 9mm
- Field of View: 48° (H)
- Frame Rate: 30hz
- Power Consumption: 4W
- Power Requirements: 12 VDC power to Controller
Main Features
- High-resolution 640 x 512 thermal imaging

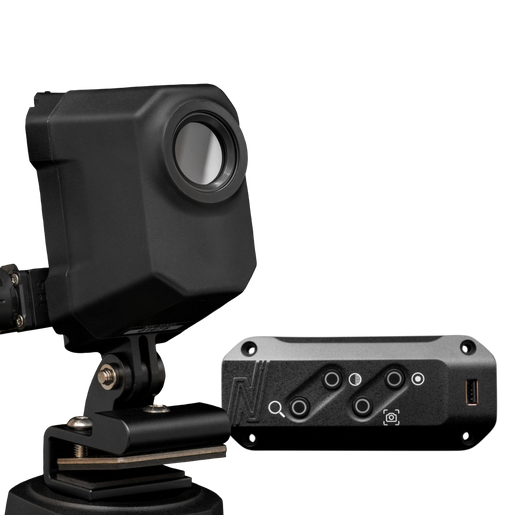

- Vehicle Hood Mount included
- USB to the Trailblazer - HDMI Controller, HDMI to a monitor
- Controller enables change of color palette, zoom and recording
- Snapshot or event-based recording
- Rugged IP69 sealed design
Range
| Detection | Recognition | Identification |
|---|---|---|
| 660 yards | 180 yards | 90 yards |
Accessories
- Standard Hood Mount
- Hood Mount Tools and Accessories
- USB Cable
- Trailblazer – HDMI Controller
- Velcro Ties (x4)
- Note: Grille mount not included
