Browse

NightRide
Trailblazer 640 Grille Mount USB
640 Grille Mount USB

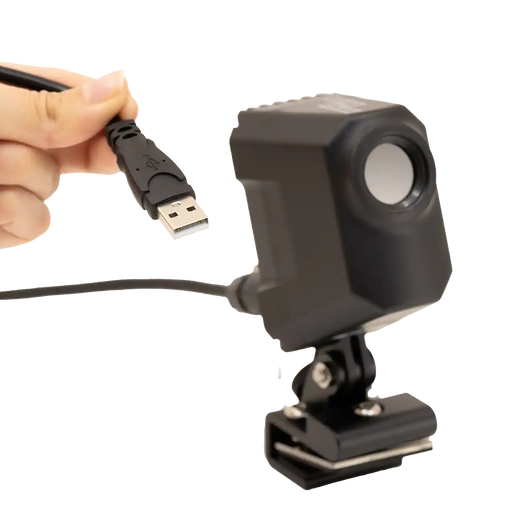

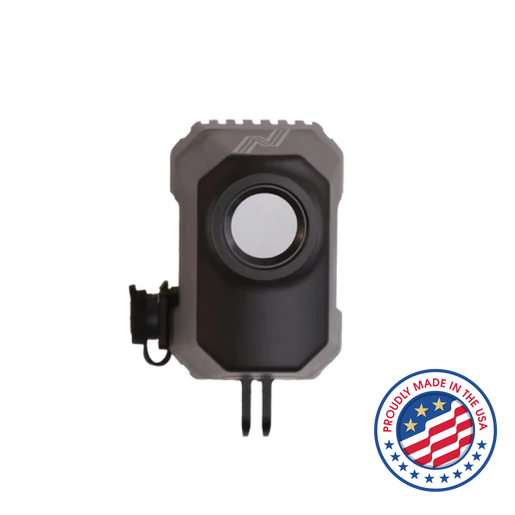

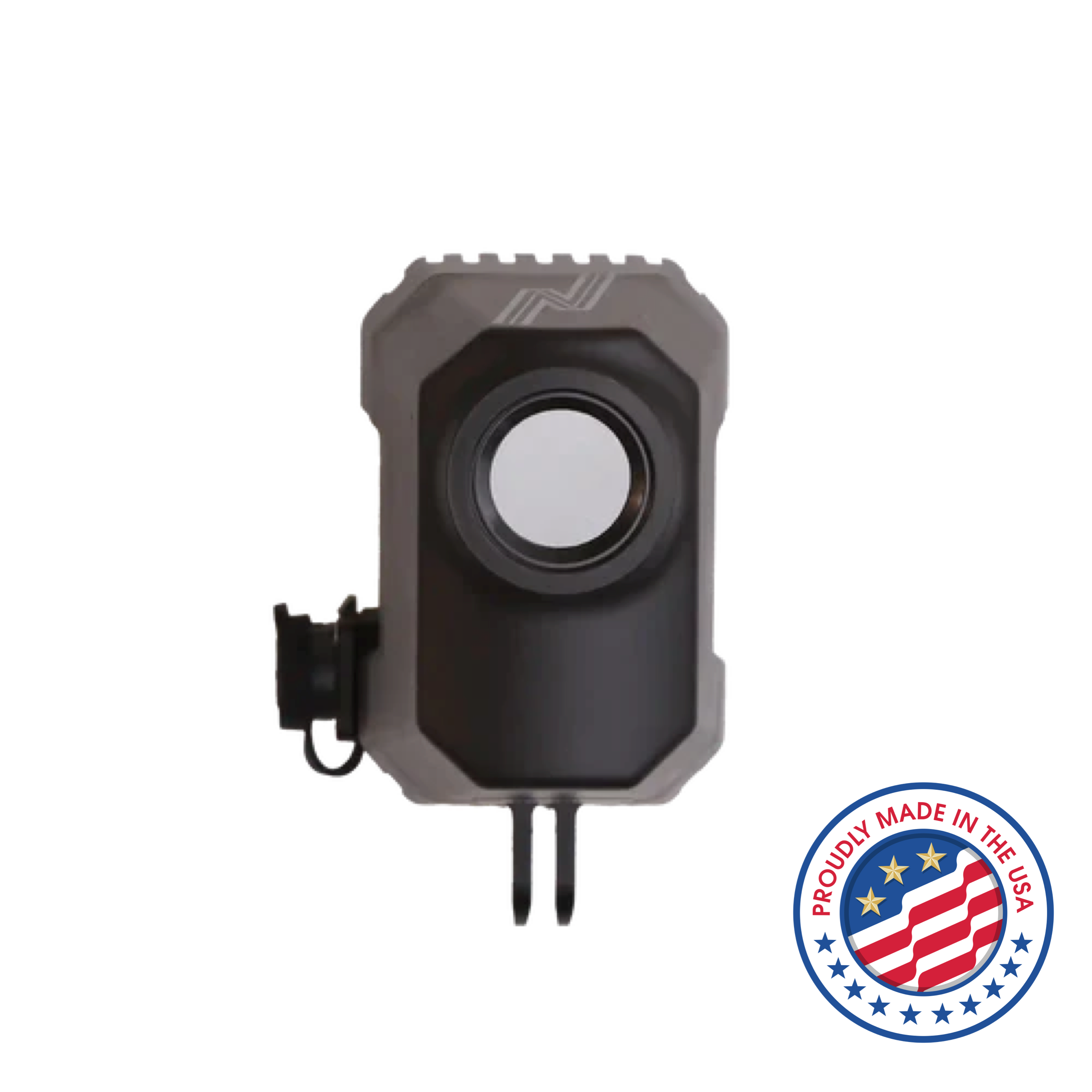

The NightRide Trailblazer 640 Grille Mount – USB is a high-resolution thermal imaging system built for discreet grille installation. With USB-A 3.1 connectivity to laptops and tablets, rugged IP69 construction, and a 90° connector for simplified mounting, it delivers powerful thermal vision in all environments.

Trailblazer 640 Grille Mount USB
Trailblazer 640 Grille Mount USB

NightRide
Trailblazer 640 Grille Mount USB
640 Grille Mount USB

USD $4,370

The NightRide Trailblazer 640 Grille Mount – USB is a high-resolution thermal imaging system built for discreet grille installation. With USB-A 3.1 connectivity to laptops and tablets, rugged IP69 construction, and a 90° connector for simplified mounting, it delivers powerful thermal vision in all environments.

NRR640-GU
Find A Dealer
Full Lineup

ALL NIGHTRIDE PRODUCTS ARE SOLD THROUGH AUTHORIZED DEALERS WHO MAY OFFER THIS PRODUCT AT A DISCOUNT. FOR A LIST OF AUTHORIZED DEALERS VISIT OUR DEALER PAGE.

DEALER INQUIRIES WELCOMED. PLEASE EMAIL US AT contact@getnightride.com

For International Customers-shipping, customs, and taxes are not included in the list price.

Featuring a 640 x 512 uncooled micro-bolometer and a 9mm lens, the Trailblazer 640 Grille Mount detects thermal signatures up to 660 yards away in fog, rain, snow, smoke, or complete darkness. It installs quickly using the included hood mount, while the 90° connector allows seamless integration behind the grille. Streaming and power are supplied directly via USB-A 3.1 to a Windows laptop or tablet. Supporting continuous or event-based recording, the system consumes just 4W while delivering smooth 30hz video. With IP69 sealing, it’s built to withstand extreme conditions and mission demands.


Specifications

  • Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
  • Weight: 6 ounces
  • Operating Temp: -40°F to +140°F
  • Sealed Design: IP69 rated
  • Sensor Type: 640 x 512 uncooled micro-bolometer
  • Lens: 9mm
  • Field of View: 48° (H)
  • Frame Rate: 30hz
  • Power Consumption: 4W
  • Power Requirements: 5 VDC (powered by laptop/tablet USB-A 3.1)

Main Features

  • High-resolution 640 x 512 thermal imaging
  • Vehicle Hood Mount included
  • USB-A 3.1 connection for power + streaming
  • 90° connector for grille mounting
  • Always recording or event-based recording
  • Rugged IP69 sealed design

Range

Detection Recognition Identification
660 yards 180 yards 90 yards

Accessories

  • Standard Hood Mount
  • Hood Mount Tools and Accessories
  • USB Cable
  • Velcro Ties (x4)
  • Note: Grille mount not included

Full Situational Awareness

Trailblazer extends visibility beyond headlights, enabling drivers and operators to see threats, obstacles, and targets in all conditions. Whether for tactical use, safety, or off-road performance, it ensures critical seconds of awareness to prepare and act effectively.

Not Certain Which NightRide to Choose?

*Table scrolls horizontally

Model Resolution Detection* (in Yards) Recognition* (in Yards) Identification* (in Yards) Field of View WiFi Frequency to Display Wired via Ethernet Remote Control Mounting Sample Use Cases
NightRide Trailblazer Standard 480 120 60 28⁰ 2.4 Ghz No No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer w Ethernet Standard 480 120 60 28⁰ 2.4 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer HighRes 640 High 660 180 90 28⁰ 5 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Sentinel Standard 480 120 60 28⁰ 2.4 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide Sentinel 640-13 High 660 180 90 28⁰ 5 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide PRO-SL (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz No Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL w Ethernet (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL 640 (Ring or Cableless) High 660 180 90 28⁰ 5 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide 360 Classic 384-13 Standard 480 120 60 28⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic 384-19 Standard 660 180 90 19⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic Telephoto 384-35 Standard 1200 330 165 10⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res - 640-19/Plus 640-19 High 960 240 120 23⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res Telephoto 640-35/Plus 640-35 High 1750 440 220 12⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
