Trailblazer 640 Grille Mount w/ Ethernet
640 Grille Mount w/ Ethernet

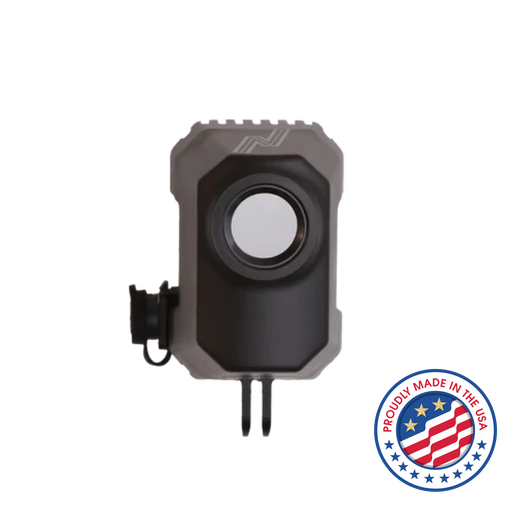

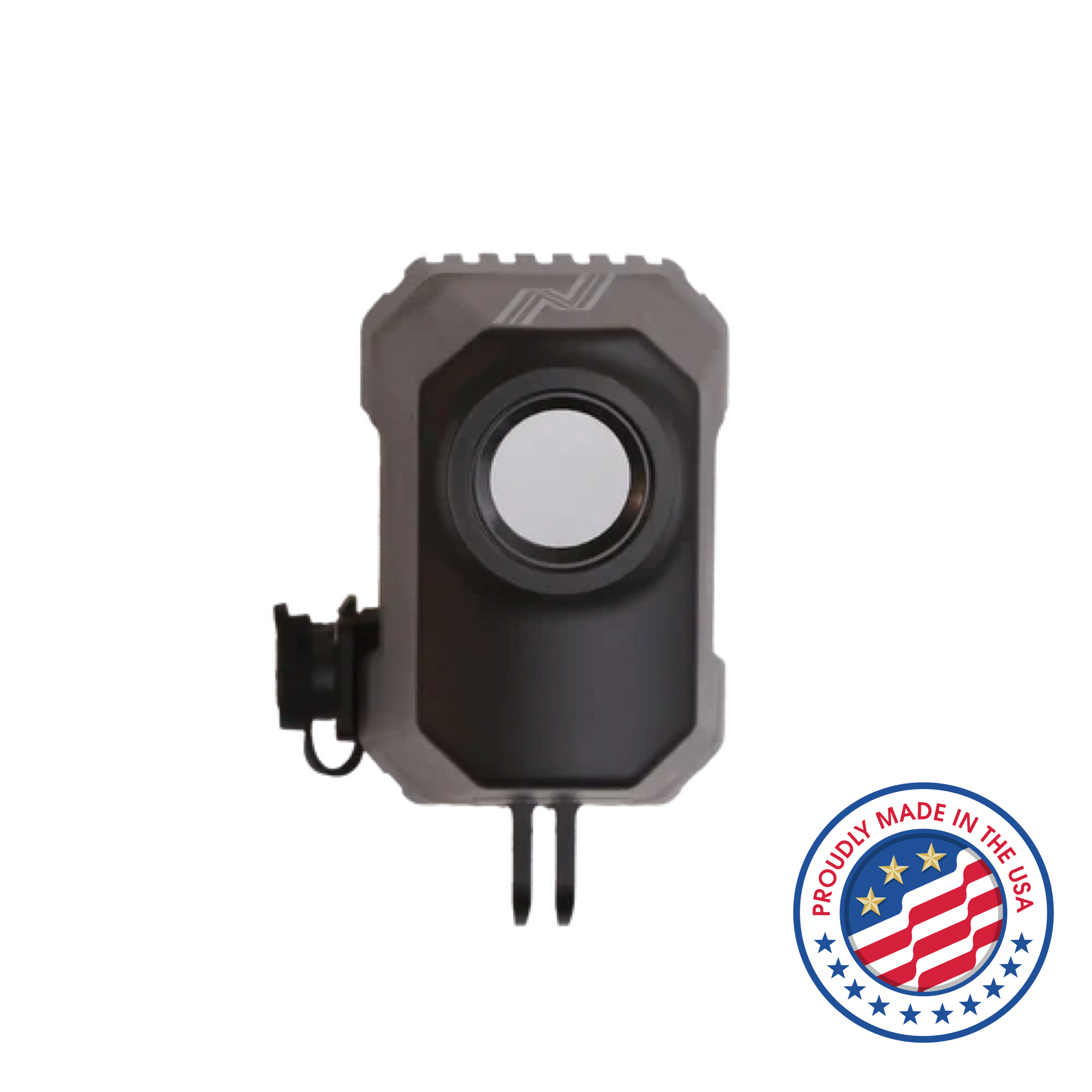

The NightRide Trailblazer 640 Grille Mount – Ethernet is a high-resolution thermal camera system engineered for discreet grille integration. With Wi-Fi hotspot and Ethernet connectivity, rugged IP69 durability, and a 90° mounting connector, it offers unmatched situational awareness for vehicles and portable operations.

Trailblazer 640 Grille Mount w/ Ethernet
Trailblazer 640 Grille Mount w/ Ethernet

NightRide
Trailblazer 640 Grille Mount w/ Ethernet
640 Grille Mount w/ Ethernet

USD $4,370

The NightRide Trailblazer 640 Grille Mount – Ethernet is a high-resolution thermal camera system engineered for discreet grille integration. With Wi-Fi hotspot and Ethernet connectivity, rugged IP69 durability, and a 90° mounting connector, it offers unmatched situational awareness for vehicles and portable operations.

NRR640-13GE
Find A Dealer
Full Lineup

ALL NIGHTRIDE PRODUCTS ARE SOLD THROUGH AUTHORIZED DEALERS WHO MAY OFFER THIS PRODUCT AT A DISCOUNT. FOR A LIST OF AUTHORIZED DEALERS VISIT OUR DEALER PAGE.

DEALER INQUIRIES WELCOMED. PLEASE EMAIL US AT contact@getnightride.com

For International Customers-shipping, customs, and taxes are not included in the list price.

Featuring a 640 x 512 uncooled micro-bolometer and a 13mm lens, the Trailblazer 640 Grille Mount delivers outstanding clarity with detection up to 660 yards—even in fog, snow, rain, smoke, or total darkness. The 90° connector simplifies grille mounting, while installation is quick with the included hood mount. Video streams via Wi-Fi hotspot or Ethernet to displays, with support for always-on or event-based recording. The unit can also be deployed on foot using a GoPro mount and auxiliary battery pack. With IP69 sealing, 4W power consumption, and rugged construction, it’s built to withstand extreme conditions and mission demands.

Specifications

  • Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
  • Weight: 6 ounces
  • Operating Temp: -40°F to +140°F
  • Sealed Design: IP69 rated
  • Sensor Type: 640 x 512 uncooled micro-bolometer
  • Lens: 13mm
  • Field of View: 28° (H)
  • Frame Rate: 25hz
  • Power Consumption: 4W
  • Power Requirements: 12–16 VDC

Main Features

  • High-resolution 640 x 512 thermal imaging
  • Vehicle Hood Mount included
  • Wi-Fi hotspot or Ethernet connectivity
  • 90° connector for grille mounting
  • Portable with GoPro mount + auxiliary battery pack (not included)
  • Always recording or event-based recording
  • Rugged IP69 sealed design

Range

Detection Recognition Identification
660 yards 180 yards 90 yards

Accessories

  • Standard Hood Mount
  • Hood Mount Tools and Accessories
  • Passive PoE Cable
  • Passive PoE Injector Adapter
  • Cigarette Plug to Barrel Cable
  • Alligator to 6-Pin Cable
  • Ethernet Cable
  • USB-C and Lightning Adapters
  • Velcro Ties (x4)
  • Ring Connections
  • Note: Grille mount not included

Full Situational Awareness

Trailblazer extends vision beyond the reach of headlights—providing critical awareness for safer driving, tactical surveillance, and rescue operations. Whether mounted to vehicles or carried portably, it ensures operators gain the crucial seconds they need to anticipate and act.

Not Certain Which NightRide to Choose?

*Table scrolls horizontally

Model Resolution Detection* (in Yards) Recognition* (in Yards) Identification* (in Yards) Field of View WiFi Frequency to Display Wired via Ethernet Remote Control Mounting Sample Use Cases
NightRide Trailblazer Standard 480 120 60 28⁰ 2.4 Ghz No No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer w Ethernet Standard 480 120 60 28⁰ 2.4 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer HighRes 640 High 660 180 90 28⁰ 5 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Sentinel Standard 480 120 60 28⁰ 2.4 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide Sentinel 640-13 High 660 180 90 28⁰ 5 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide PRO-SL (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz No Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL w Ethernet (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL 640 (Ring or Cableless) High 660 180 90 28⁰ 5 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide 360 Classic 384-13 Standard 480 120 60 28⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic 384-19 Standard 660 180 90 19⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic Telephoto 384-35 Standard 1200 330 165 10⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res - 640-19/Plus 640-19 High 960 240 120 23⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res Telephoto 640-35/Plus 640-35 High 1750 440 220 12⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
