NightRide
Trailblazer 640 Analog
640 Analog

The NightRide Trailblazer 640 Analog is a high-resolution thermal camera system built for rugged vehicle integration. With fast RCA analog streaming, it delivers professional-grade thermal vision and situational awareness in demanding conditions.

Trailblazer 640 Analog
Trailblazer 640 Analog
Trailblazer 640 Analog
Trailblazer 640 Analog

NightRide
Trailblazer 640 Analog
640 Analog

USD $4,250

The NightRide Trailblazer 640 Analog is a high-resolution thermal camera system built for rugged vehicle integration. With fast RCA analog streaming, it delivers professional-grade thermal vision and situational awareness in demanding conditions.

NRR640-A
Find A Dealer
Full Lineup

ALL NIGHTRIDE PRODUCTS ARE SOLD THROUGH AUTHORIZED DEALERS WHO MAY OFFER THIS PRODUCT AT A DISCOUNT. FOR A LIST OF AUTHORIZED DEALERS VISIT OUR DEALER PAGE.

DEALER INQUIRIES WELCOMED. PLEASE EMAIL US AT contact@getnightride.com

For International Customers-shipping, customs, and taxes are not included in the list price.

Equipped with a 640 x 512 uncooled micro-bolometer and a 9mm lens, the Trailblazer 640 Analog provides exceptional clarity with detection up to 660 yards—even in complete darkness, fog, rain, snow, or smoke. Installation is quick using the included hood mount, while RCA analog connectivity streams directly to monitors. Powered through a 5V USB port, the system consumes just 4W while delivering real-time 30hz performance. Rugged IP69 sealing ensures long-term reliability in extreme environments.

Specifications

  • Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
  • Weight: 6 ounces
  • Operating Temp: -40°F to +140°F
  • Sealed Design: IP69 rated
  • Sensor Type: 640 x 512 uncooled micro-bolometer
  • Lens: 9mm
  • Field of View: 48° (H)
  • Frame Rate: 30hz
  • Power Consumption: 4W
  • Power Requirements: 5 VDC (via monitor USB)

Main Features

  • High-resolution 640 x 512 thermal imaging
  • Vehicle Hood Mount included

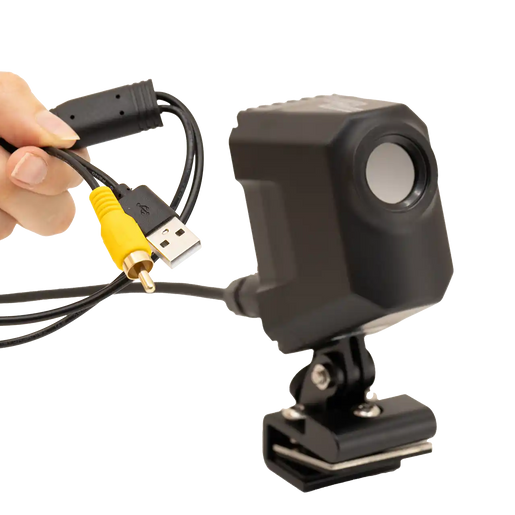

  • RCA analog connection to monitor
  • USB connection for 5V power
  • Rugged IP69 sealed design
  • Simple, fast installation

Range

Detection Recognition Identification
660 yards 180 yards 90 yards

Accessories

  • Standard Hood Mount
  • Hood Mount Tools and Accessories
  • Analog + USB Cable (power and streaming)
  • Velcro Ties (x4)

Full Situational Awareness

Trailblazer enhances visibility where headlights fail, providing operators with crucial situational awareness for driving, tactical, and rescue operations. It delivers the critical seconds needed to anticipate, prepare, and respond effectively in low light and extreme weather.

Not Certain Which NightRide to Choose?

*Table scrolls horizontally

Model Resolution Detection* (in Yards) Recognition* (in Yards) Identification* (in Yards) Field of View WiFi Frequency to Display Wired via Ethernet Remote Control Mounting Sample Use Cases
NightRide Trailblazer Standard 480 120 60 28⁰ 2.4 Ghz No No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer w Ethernet Standard 480 120 60 28⁰ 2.4 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer HighRes 640 High 660 180 90 28⁰ 5 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Sentinel Standard 480 120 60 28⁰ 2.4 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide Sentinel 640-13 High 660 180 90 28⁰ 5 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide PRO-SL (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz No Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL w Ethernet (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL 640 (Ring or Cableless) High 660 180 90 28⁰ 5 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide 360 Classic 384-13 Standard 480 120 60 28⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic 384-19 Standard 660 180 90 19⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic Telephoto 384-35 Standard 1200 330 165 10⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res - 640-19/Plus 640-19 High 960 240 120 23⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res Telephoto 640-35/Plus 640-35 High 1750 440 220 12⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
