NightRide

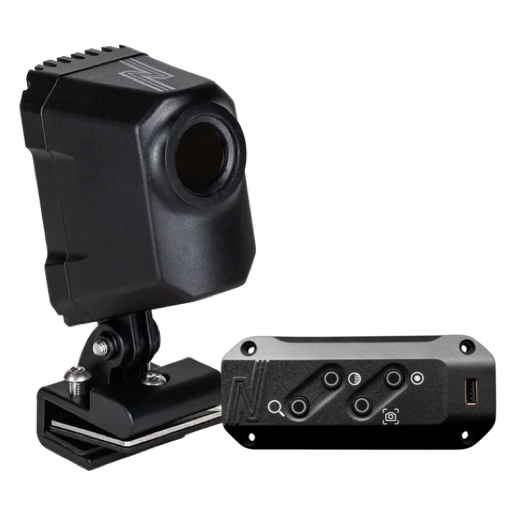

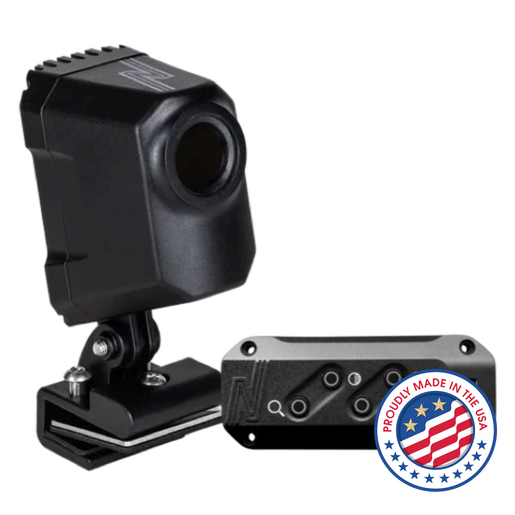

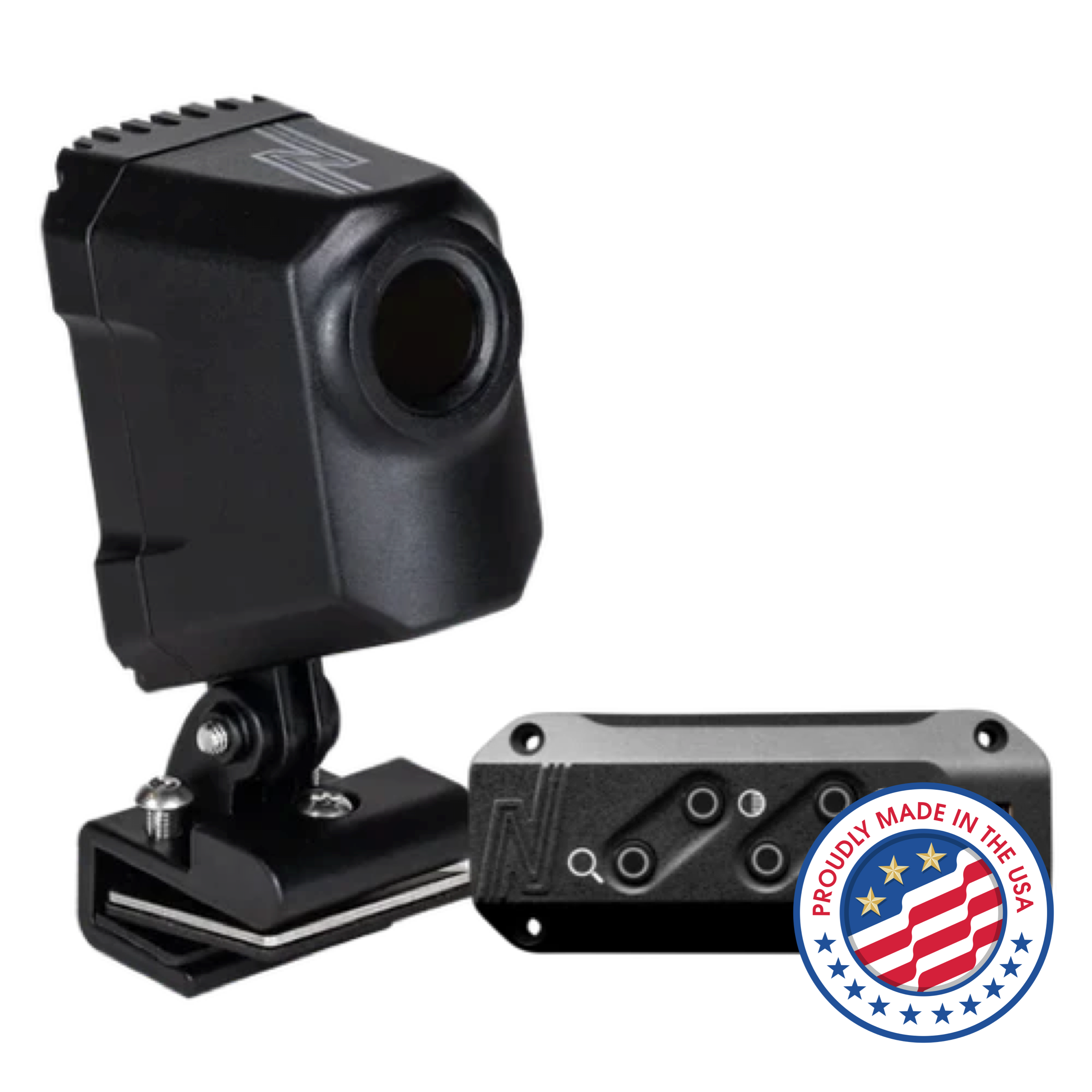

Trailblazer 384 USB w HDMI Controller
NightRide
Trailblazer 384 USB w HDMI Controller
Regular price
USD $2,350
NRTC384-U
Equipped with a 384 x 288 uncooled micro-bolometer and a 9mm lens, the Trailblazer 384 USB detects heat signatures up to 480 yards away—even in darkness, fog, rain, snow, or smoke. Installation is quick using the included hood mount, and video streams directly to a Windows laptop or tablet over USB-A 3.1. With rugged IP69 sealing, lightweight design, and efficient 4W power consumption, this system is built to endure extreme conditions while delivering continuous 30hz imaging performance.
Specifications
- Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
- Weight: 6 ounces
- Operating Temp: -40°F to +140°F
- Sealed Design: IP69 rated
- Sensor Type: 384 x 288 uncooled micro-bolometer
- Lens: 9mm
- Field of View: 29° (H)
- Frame Rate: 30hz
- Power Consumption: 4W
- Power Requirements: 12 VDC power to Controller
Main Features
- Standard resolution 384 x 288 thermal imaging
- Vehicle Hood Mount included
- USB to the Trailblazer - HDMI Controller, HDMI to a monitor
- Controller enables change of color palette, zoom and recording
- Snapshot or event-based recording
- Rugged IP69 sealed construction
Range
| Detection | Recognition | Identification |
|---|---|---|
| 480 yards | 120 yards | 60 yards |
Accessories
- Standard Hood Mount
- Hood Mount Tools and Accessories
- USB Cable
- Trailblazer – HDMI Controller
- Velcro Ties (x4)
