Trailblazer 384 Grille Mount w/ Ethernet
384 Grille Mount w/ Ethernet

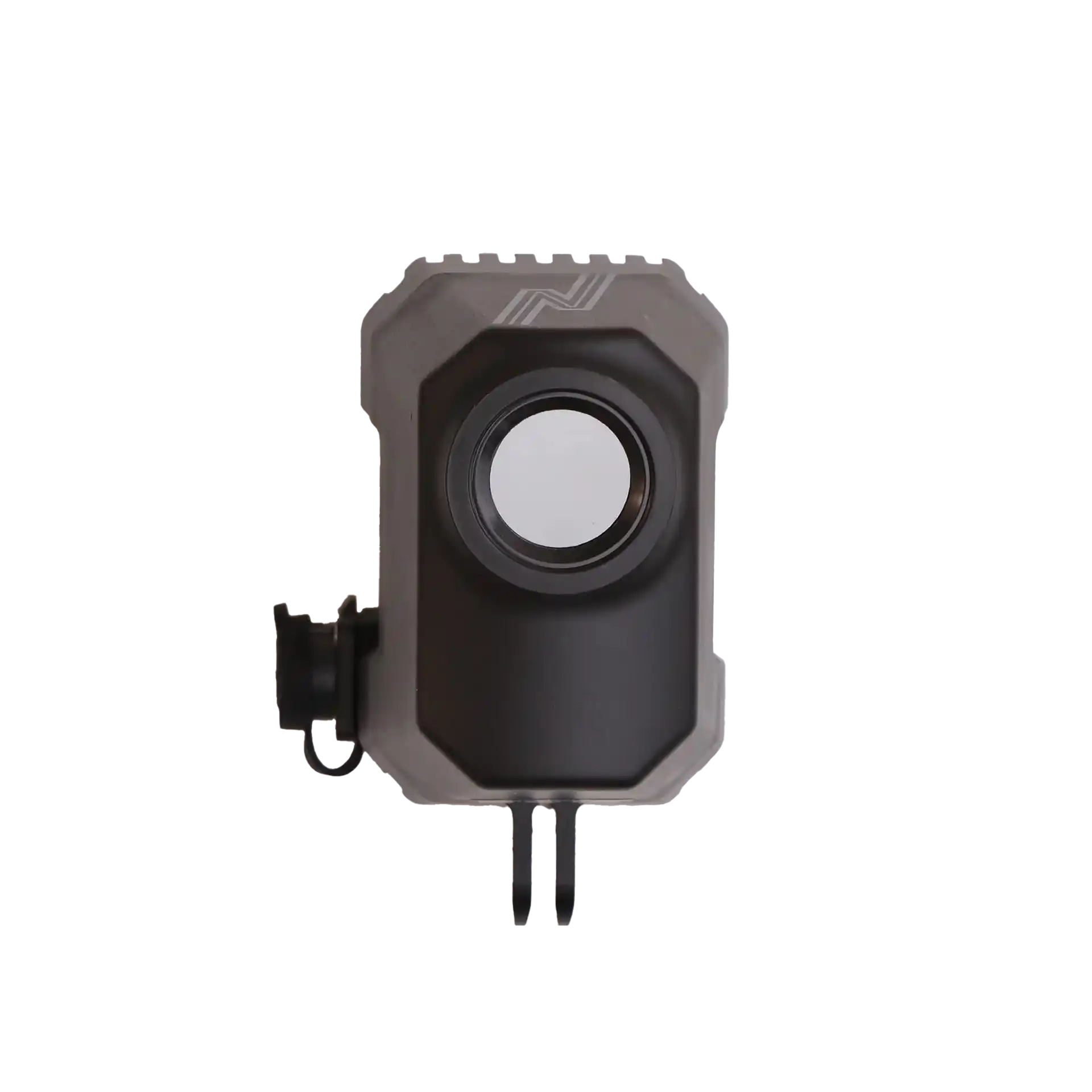

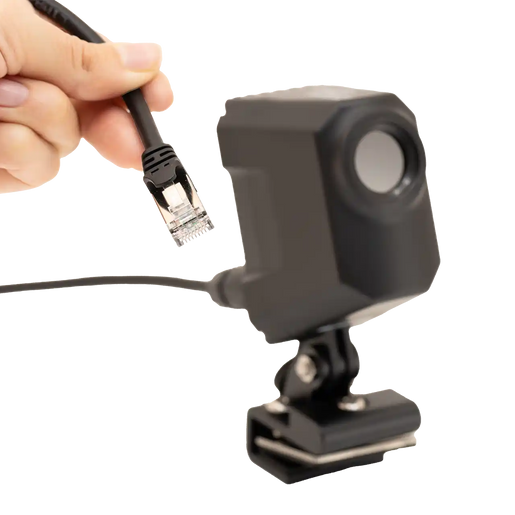

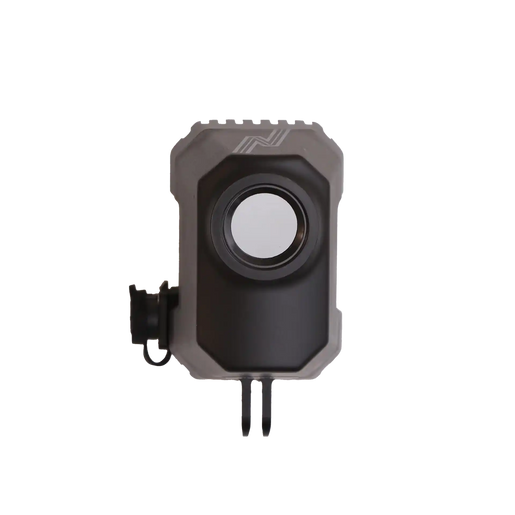

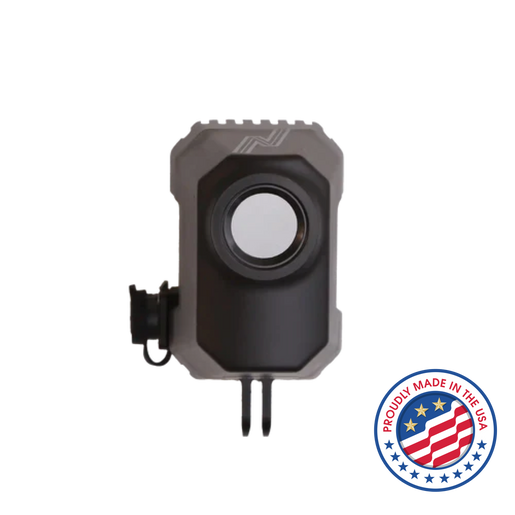

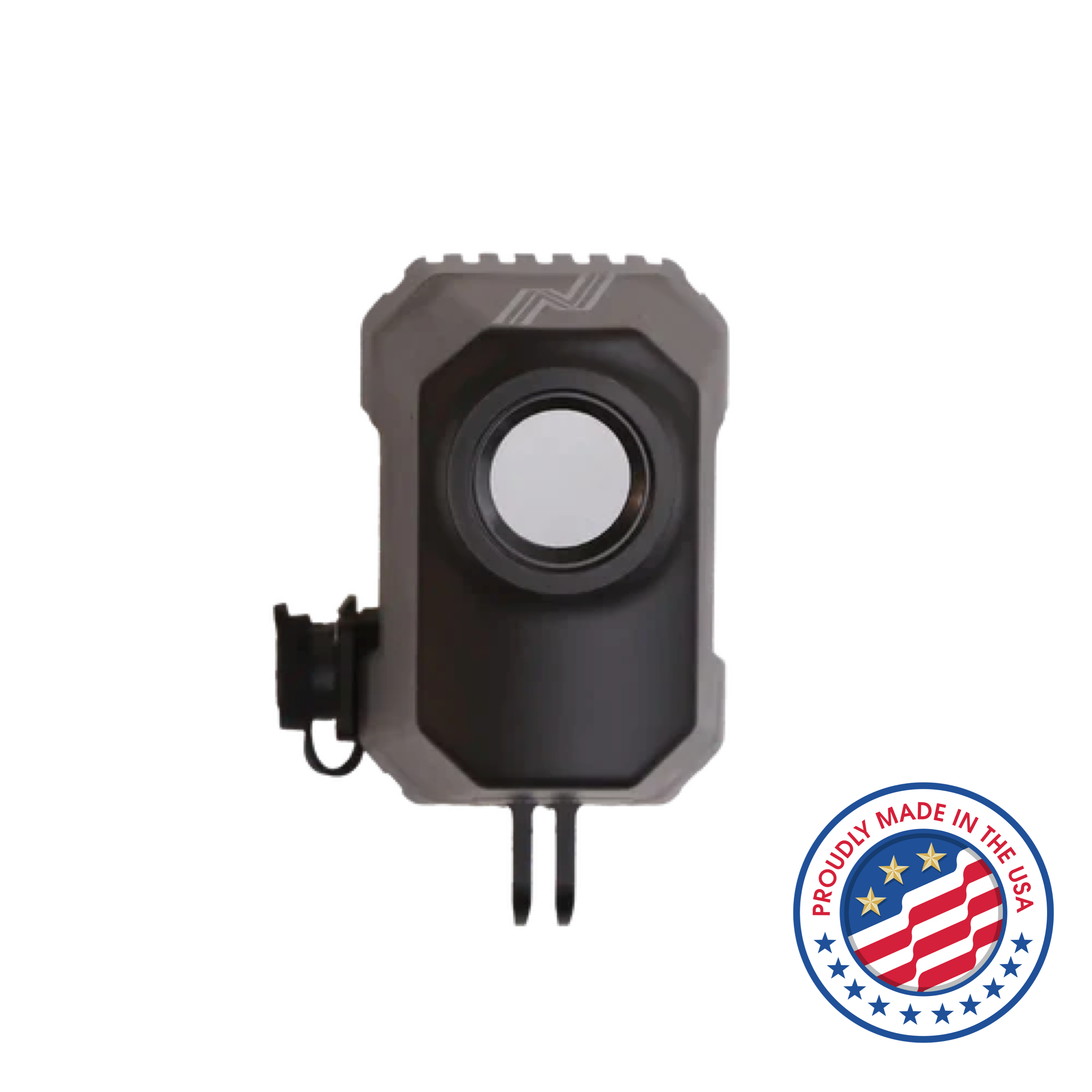

The NightRide Trailblazer 384 Grille Mount w/ Ethernet is a versatile, rugged thermal camera system designed for both vehicle-mounted and portable use. With Ethernet and Wi-Fi hotspot connectivity, it delivers flexible streaming options and dependable thermal awareness across mission-critical and recreational environments.

Trailblazer 384 Grille Mount w/ Ethernet
Trailblazer 384 Grille Mount w/ Ethernet

NightRide
Trailblazer 384 Grille Mount w/ Ethernet
384 Grille Mount w/ Ethernet

USD $1,995

The NightRide Trailblazer 384 Grille Mount w/ Ethernet is a versatile, rugged thermal camera system designed for both vehicle-mounted and portable use. With Ethernet and Wi-Fi hotspot connectivity, it delivers flexible streaming options and dependable thermal awareness across mission-critical and recreational environments.

NRR0010-GE
Find A Dealer
Full Lineup

ALL NIGHTRIDE PRODUCTS ARE SOLD THROUGH AUTHORIZED DEALERS WHO MAY OFFER THIS PRODUCT AT A DISCOUNT. FOR A LIST OF AUTHORIZED DEALERS VISIT OUR DEALER PAGE.

DEALER INQUIRIES WELCOMED. PLEASE EMAIL US AT contact@getnightride.com

For International Customers-shipping, customs, and taxes are not included in the list price.

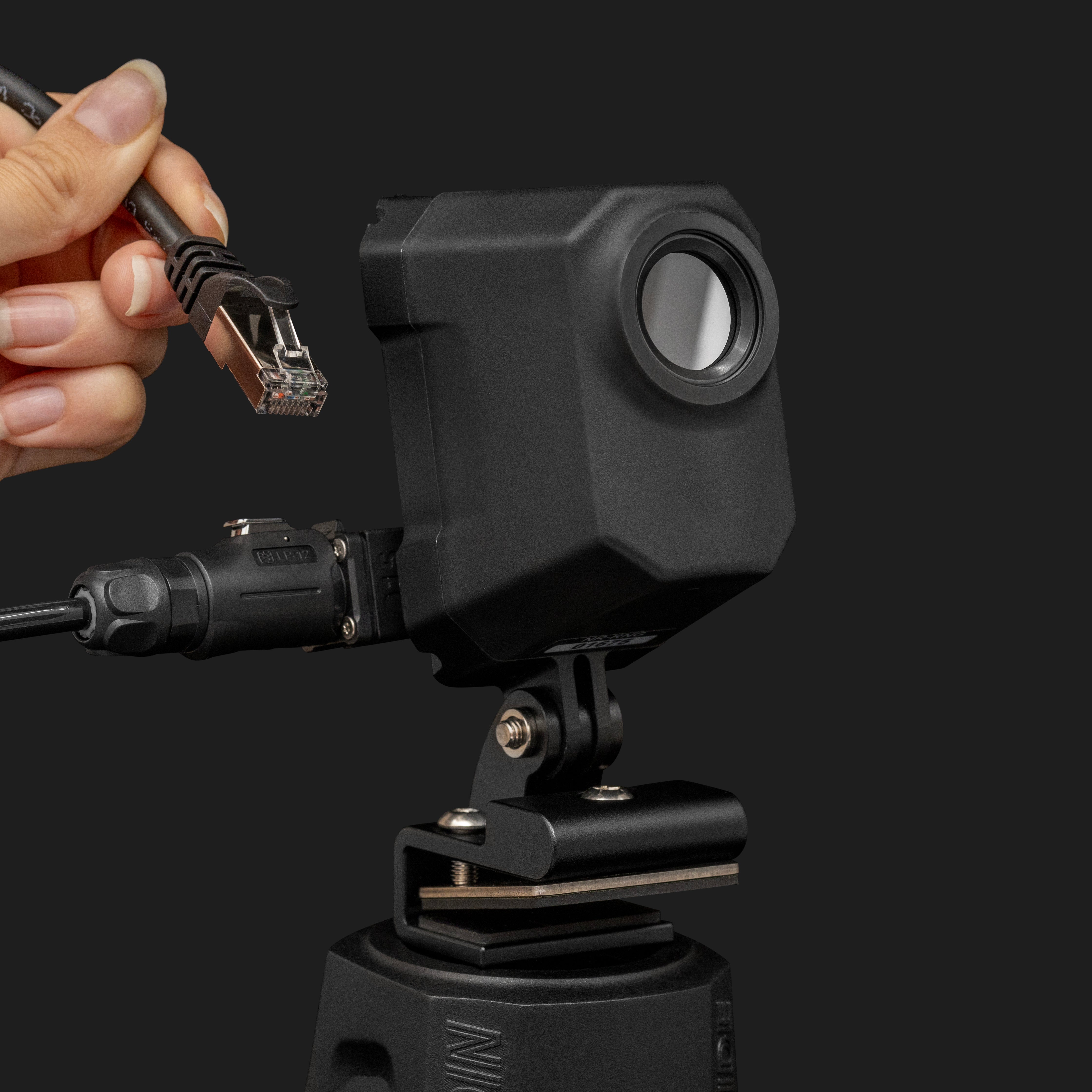

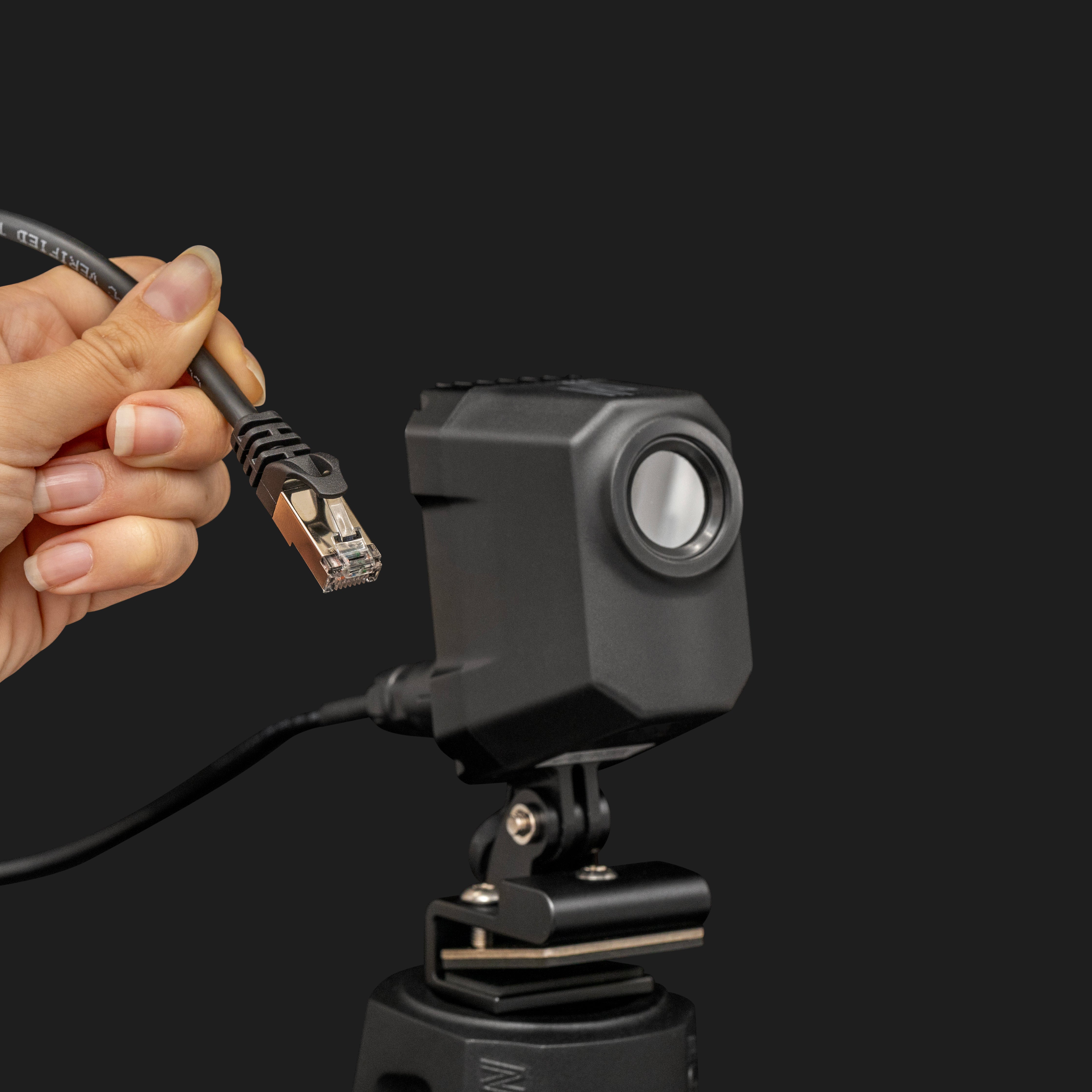

Powered by a 384 x 288 uncooled micro-bolometer and 9mm lens, the Trailblazer 384 Grille Mount detects heat signatures up to 480 yards in complete darkness, fog, snow, rain, or smoke. Installation is quick with the included hood mount and accessories, while a 90° connector simplifies grille mounting. The unit streams via Wi-Fi hotspot or Ethernet connection and supports always-on or event-based recording. It can also be detached and used portably with a GoPro helmet mount or backpack setup when paired with an auxiliary battery pack. Rugged IP69 sealing and low 4W power draw ensure reliable performance in extreme environments.

Specifications

  • Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
  • Weight: 6 ounces
  • Operating Temp: -40°F to +140°F
  • Sealed Design: IP69 rated
  • Sensor Type: 384 x 288 uncooled micro-bolometer
  • Lens: 9mm
  • Field of View: 28° (H)
  • Frame Rate: 25hz
  • Power Consumption: 4W
  • Power Requirements: 12–16 VDC

Main Features

  • Vehicle Hood Mount included
  • Wi-Fi hotspot or Ethernet connection
  • 90° connector for streamlined grille mounting
  • Portable use with GoPro mount + auxiliary battery pack (not included)
  • Always recording or event-based recording
  • Rugged IP69 sealed design

Range

Detection Recognition Identification
480 yards 120 yards 60 yards

Accessories

  • Standard Hood Mount
  • Hood Mount Tools and Accessories
  • Passive PoE Injector Adapter
  • Cigarette Plug to Barrel Cable
  • Alligator to 6-pin Cable
  • Ethernet Cable
  • USB-C and Lightning Adapters
  • Velcro Ties (x4)
  • Ring Connections
  • Note: Grille mount not included

Full Situational Awareness

Trailblazer gives drivers and operators the edge by expanding visibility far beyond headlights. Whether integrated into vehicles or used portably, it provides the crucial situational awareness needed for safe navigation, tactical operations, and emergency response.

Not Certain Which NightRide to Choose?

*Table scrolls horizontally

Model Resolution Detection* (in Yards) Recognition* (in Yards) Identification* (in Yards) Field of View WiFi Frequency to Display Wired via Ethernet Remote Control Mounting Sample Use Cases
NightRide Trailblazer Standard 480 120 60 28⁰ 2.4 Ghz No No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer w Ethernet Standard 480 120 60 28⁰ 2.4 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer HighRes 640 High 660 180 90 28⁰ 5 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Sentinel Standard 480 120 60 28⁰ 2.4 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide Sentinel 640-13 High 660 180 90 28⁰ 5 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide PRO-SL (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz No Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL w Ethernet (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL 640 (Ring or Cableless) High 660 180 90 28⁰ 5 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide 360 Classic 384-13 Standard 480 120 60 28⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic 384-19 Standard 660 180 90 19⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic Telephoto 384-35 Standard 1200 330 165 10⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res - 640-19/Plus 640-19 High 960 240 120 23⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res Telephoto 640-35/Plus 640-35 High 1750 440 220 12⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
