Trailblazer 384 Grille Mount - USB w HDMI Controller and Monitor
Trailblazer 384 Grille Mount - USB w HDMI Controller and Monitor

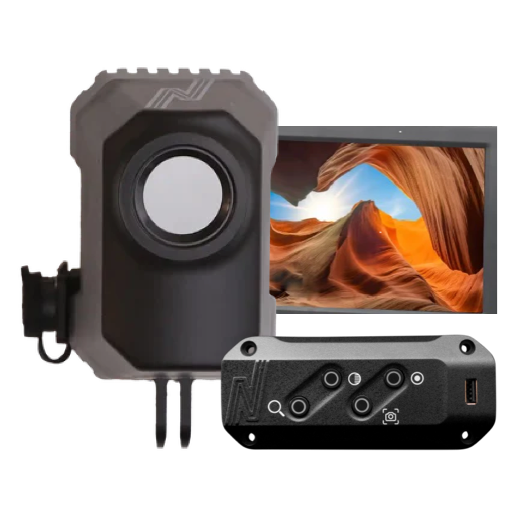

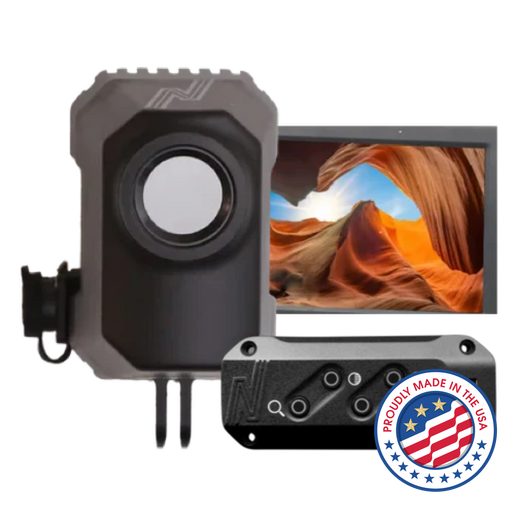

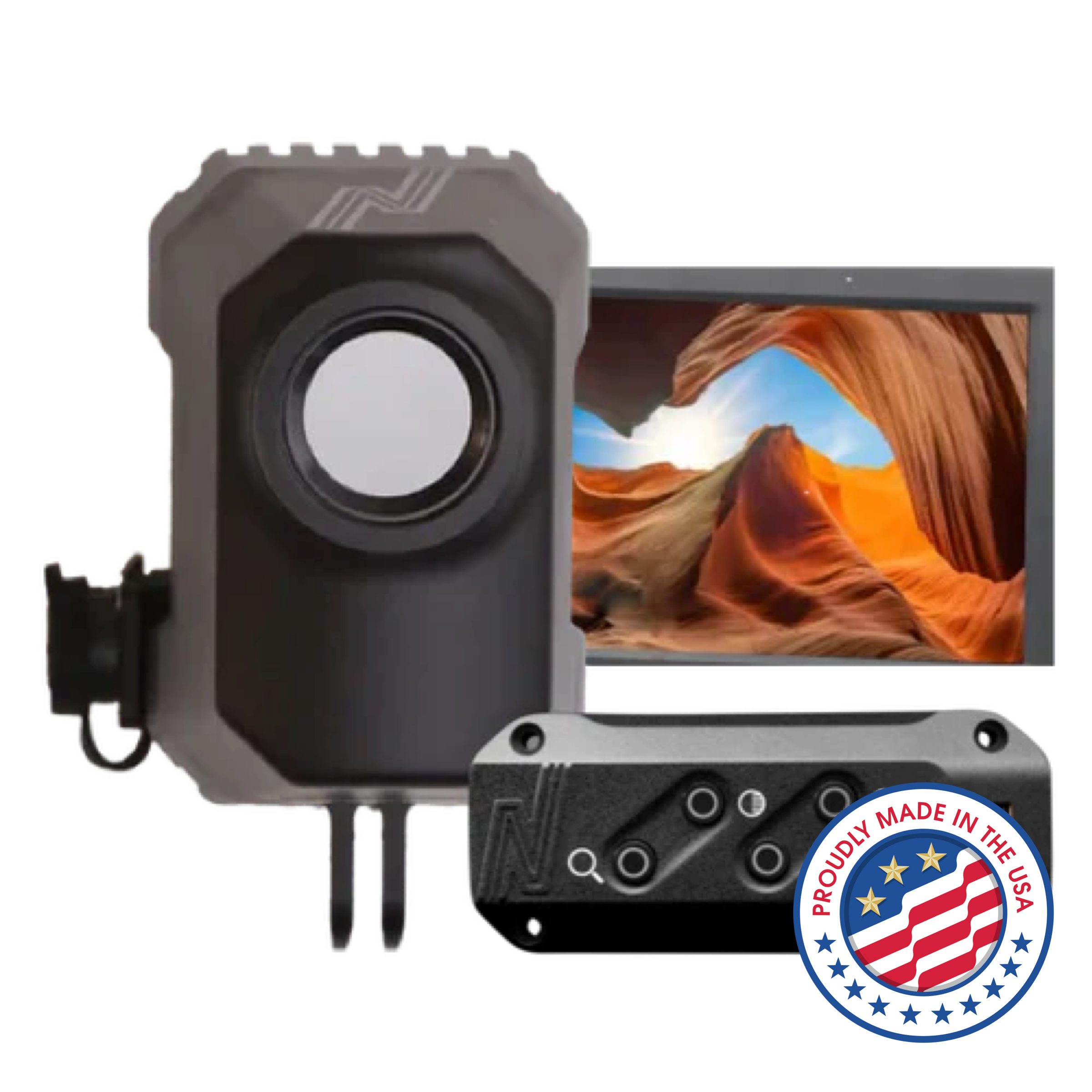

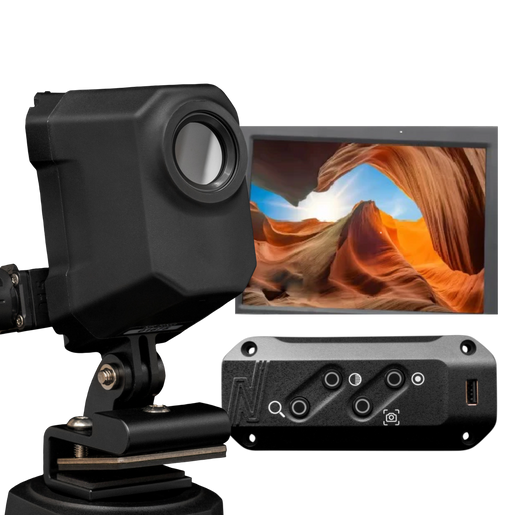

The NightRide Trailblazer 384 Grille Mount – USB is a high-resolution thermal imaging system built for discreet grille installation. With USB connectivity to the HDMI controller, the camera can be paired seamlessly with the included 8” monitor. With rugged IP69 construction, and a 90° connector for simplified mounting behind the grille, this camera delivers reliable thermal vision in the most critical situations.

Trailblazer 384 Grille Mount - USB w HDMI Controller and Monitor
Trailblazer 384 Grille Mount - USB w HDMI Controller and Monitor
Trailblazer 384 Grille Mount - USB w HDMI Controller and Monitor

NightRide
Trailblazer 384 Grille Mount - USB w HDMI Controller and Monitor
Trailblazer 384 Grille Mount - USB w HDMI Controller and Monitor

USD $2,495

The NightRide Trailblazer 384 Grille Mount – USB is a high-resolution thermal imaging system built for discreet grille installation. With USB connectivity to the HDMI controller, the camera can be paired seamlessly with the included 8” monitor. With rugged IP69 construction, and a 90° connector for simplified mounting behind the grille, this camera delivers reliable thermal vision in the most critical situations.

NRTCM384-GU
Find A Dealer
Full Lineup

ALL NIGHTRIDE PRODUCTS ARE SOLD THROUGH AUTHORIZED DEALERS WHO MAY OFFER THIS PRODUCT AT A DISCOUNT. FOR A LIST OF AUTHORIZED DEALERS VISIT OUR DEALER PAGE.

DEALER INQUIRIES WELCOMED. PLEASE EMAIL US AT contact@getnightride.com

For International Customers-shipping, customs, and taxes are not included in the list price.

Featuring a 384 x 288 uncooled micro-bolometer and 9mm lens, the Trailblazer 384 Grille Mount detects heat signatures up to 480 yards away—even in fog, rain, snow, smoke, or complete darkness. The 90° connector allows for easy mounting behind the grille, while installation is quick with the included hood mount and accessories. Streaming is simple through a laptop or tablet’s USB-A 3.1 port, with low 4W power draw for efficient operation. Ruggedly built and sealed to IP69 standards, the system withstands extreme environments while providing reliable 30hz imaging.

Specifications

  • Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
  • Weight: 6 ounces
  • Operating Temp: -40°F to +140°F
  • Sealed Design: IP69 rated
  • Sensor Type: 384 x 288 uncooled micro-bolometer
  • Lens: 9mm
  • Field of View: 29° (H)
  • Frame Rate: 30hz
  • Power Consumption: 4W
  • Power Requirements: 12 VDC power to Controller

Main Features

  • High-resolution 384 x 288 thermal imaging
  • 8” Monitor included
  • Vehicle Hood Mount included
  • USB to the Trailblazer - HDMI Controller, HDMI to a monitor
  • Controller enables change of color palette, zoom and recording
  • Snapshot or event-based recording
  • Rugged IP69 sealed design

Range

Detection Recognition Identification
480 yards 120 yards 60 yards

Accessories

  • Standard Hood Mount
  • Hood Mount Tools and Accessories
  • USB Cable
  • Trailblazer – HDMI Controller
  • 8” Monitor
  • Velcro Ties (x4)
  • Note: Grille mount not included

Full Situational Awareness

NightRide Trailblazer delivers critical visibility where headlights cannot. Whether driving in low-light conditions, navigating extreme weather, or operating in tactical environments, it ensures operators gain the situational awareness needed to prepare and respond safely.

Not Certain Which NightRide to Choose?

*Table scrolls horizontally

Model Resolution Detection* (in Yards) Recognition* (in Yards) Identification* (in Yards) Field of View WiFi Frequency to Display Wired via Ethernet Remote Control Mounting Sample Use Cases
NightRide Trailblazer Standard 480 120 60 28⁰ 2.4 Ghz No No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer w Ethernet Standard 480 120 60 28⁰ 2.4 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer HighRes 640 High 660 180 90 28⁰ 5 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Sentinel Standard 480 120 60 28⁰ 2.4 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide Sentinel 640-13 High 660 180 90 28⁰ 5 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide PRO-SL (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz No Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL w Ethernet (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL 640 (Ring or Cableless) High 660 180 90 28⁰ 5 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide 360 Classic 384-13 Standard 480 120 60 28⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic 384-19 Standard 660 180 90 19⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic Telephoto 384-35 Standard 1200 330 165 10⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res - 640-19/Plus 640-19 High 960 240 120 23⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res Telephoto 640-35/Plus 640-35 High 1750 440 220 12⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
