NightRide

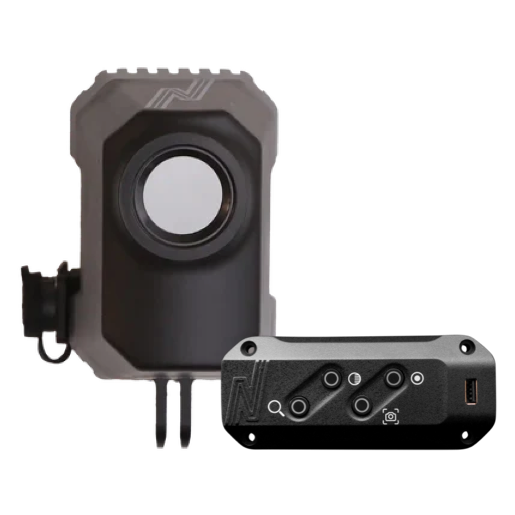

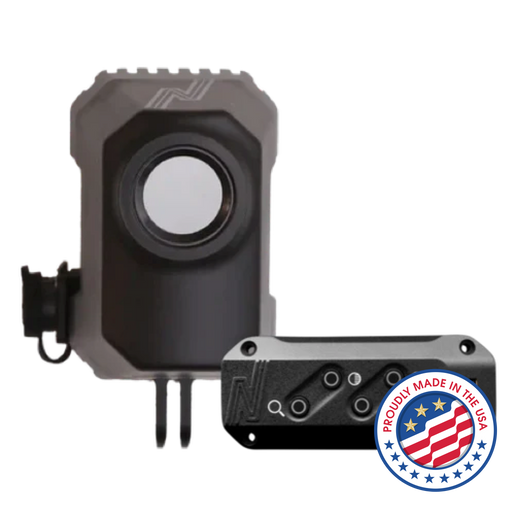

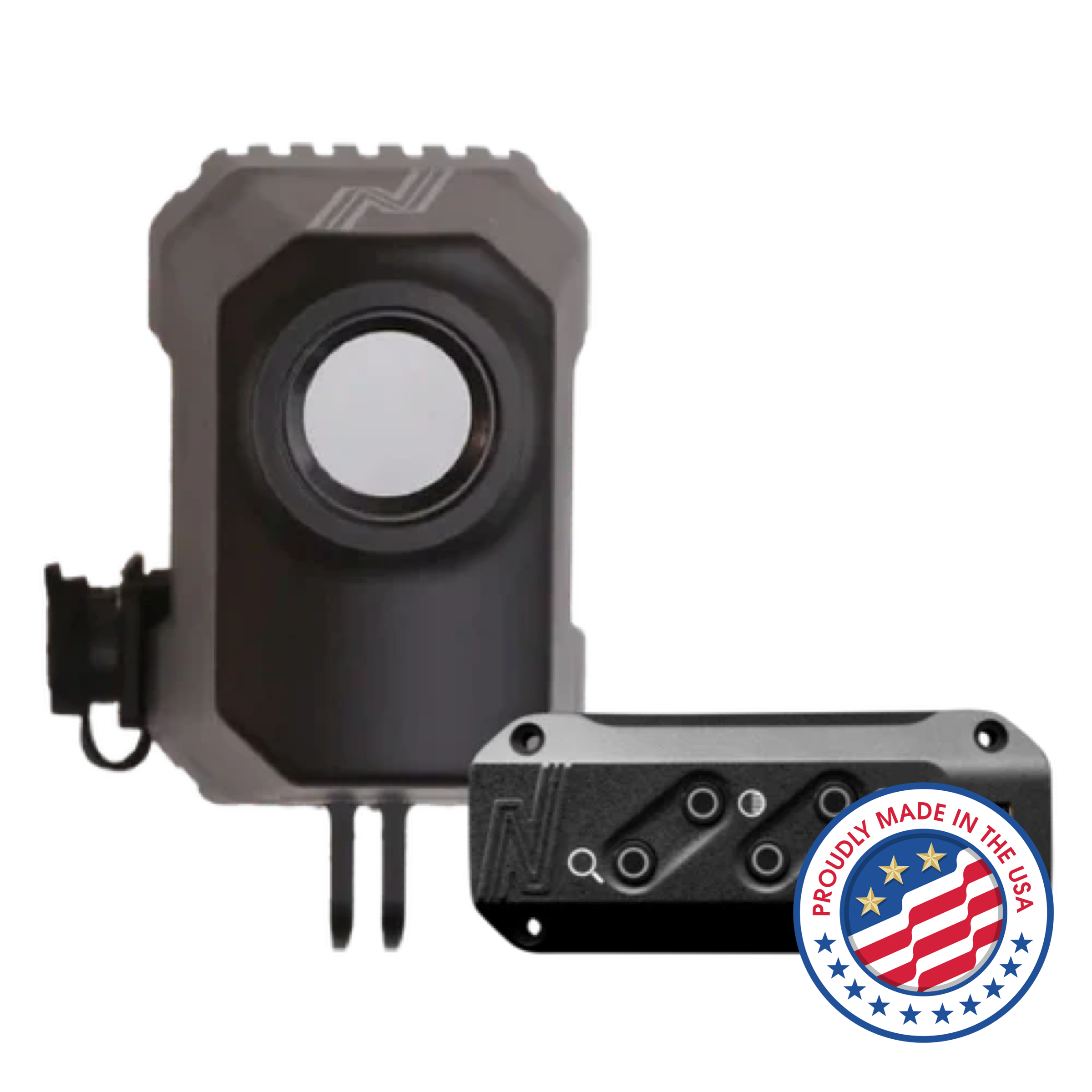

Trailblazer 384 Grille Mount - USB w HDMI Controller
NightRide
Trailblazer 384 Grille Mount - USB w HDMI Controller
Regular price
USD $2,425
NRTC384-GU
Featuring a 384 x 288 uncooled micro-bolometer and 9mm lens, the Trailblazer 384 Grille Mount detects heat signatures up to 480 yards away—even in fog, rain, snow, smoke, or complete darkness. The 90° connector allows for easy mounting behind the grille, while installation is quick with the included hood mount and accessories. Streaming is simple through a laptop or tablet’s USB-A 3.1 port, with low 4W power draw for efficient operation. Ruggedly built and sealed to IP69 standards, the system withstands extreme environments while providing reliable 30hz imaging.
Specifications
- Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
- Weight: 6 ounces
- Operating Temp: -40°F to +140°F
- Sealed Design: IP69 rated
- Sensor Type: 384 x 288 uncooled micro-bolometer
- Lens: 9mm
- Field of View: 29° (H)
- Frame Rate: 30hz
- Power Consumption: 4W
- Power Requirements: 12 VDC power to Controller
Main Features
- High-resolution 384 x 288 thermal imaging
- Vehicle Hood Mount included
- USB to the Trailblazer - HDMI Controller, HDMI to a monitor
- Controller enables change of color palette, zoom and recording
- Snapshot or event-based recording
- Rugged IP69 sealed design
Range
| Detection | Recognition | Identification |
|---|---|---|
| 480 yards | 120 yards | 60 yards |
Accessories
- Standard Hood Mount
- Hood Mount Tools and Accessories
- USB Cable
- Trailblazer – HDMI Controller
- Velcro Ties (x4)
- Note: Grille mount not included
