NightRide

384 Grille Mount USB


NightRide

384 Grille Mount USB
Regular price
USD $1,995
NRR0010-GU

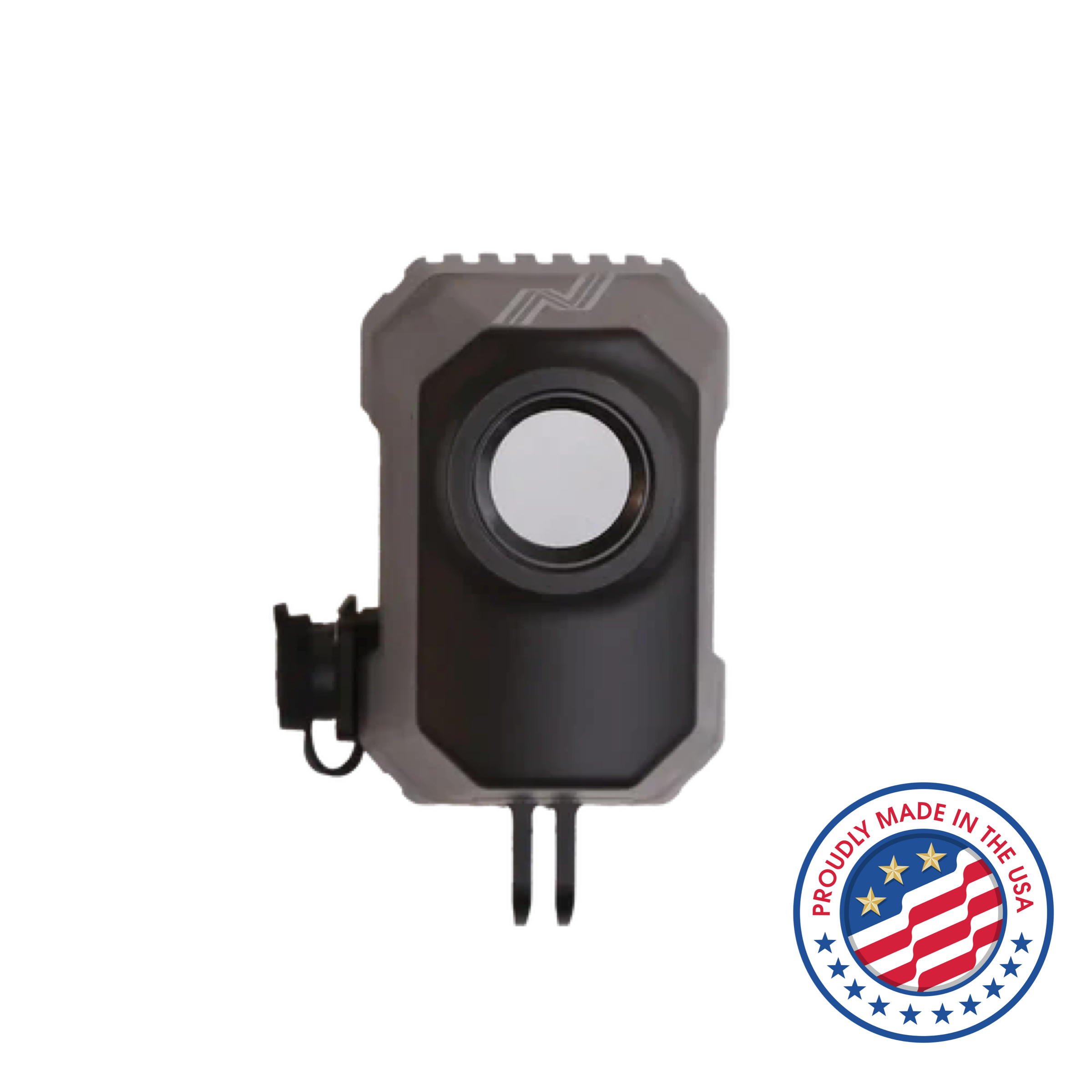

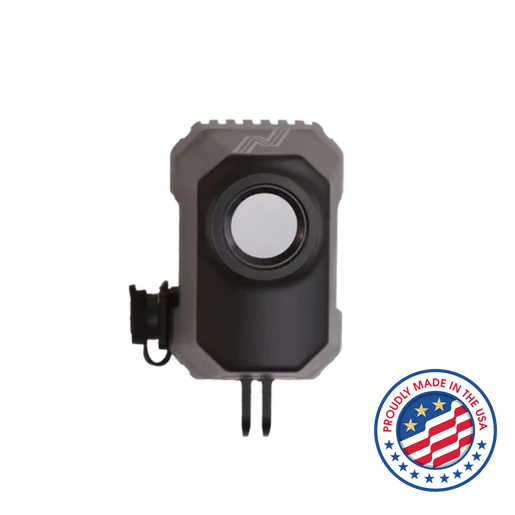

Featuring a 384 x 288 uncooled micro-bolometer and 9mm lens, the Trailblazer 384 Grille Mount detects heat signatures up to 480 yards away—even in fog, rain, snow, smoke, or complete darkness. The 90° connector allows for easy mounting behind the grille, while installation is quick with the included hood mount and accessories. Streaming is simple through a laptop or tablet’s USB-A 3.1 port, with low 4W power draw for efficient operation. Ruggedly built and sealed to IP69 standards, the system withstands extreme environments while providing reliable 30hz imaging.
Specifications
- Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
- Weight: 6 ounces
- Operating Temp: -40°F to +140°F
- Sealed Design: IP69 rated
- Sensor Type: 384 x 288 uncooled micro-bolometer
- Lens: 9mm
- Field of View: 29° (H)
- Frame Rate: 30hz
- Power Consumption: 4W
- Power Requirements: 5 VDC (powered by monitor USB)
Main Features
- Vehicle Hood Mount included
- 90° connector for streamlined grille mounting
- USB-A 3.1 connection to laptop/tablet for power + streaming
- Fast and simple installation
- Rugged IP69 sealed design
Range
Detection | Recognition | Identification |
---|---|---|
480 yards | 120 yards | 60 yards |
Accessories
- Standard Hood Mount
- Hood Mount Tools and Accessories
- USB Cable with plug cover
- Velcro Ties (x4)
- Note: Grille mount not included
Full Situational Awareness
Not Certain Which NightRide to Choose?
*Table scrolls horizontally
Model | Resolution | Detection* (in Yards) | Recognition* (in Yards) | Identification* (in Yards) | Field of View | WiFi Frequency to Display | Wired via Ethernet | Remote Control | Mounting | Sample Use Cases |
NightRide Trailblazer | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer w Ethernet | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer HighRes 640 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Sentinel | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide Sentinel 640-13 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide PRO-SL (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL w Ethernet (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL 640 (Ring or Cableless) | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide 360 Classic 384-13 | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic 384-19 | Standard | 660 | 180 | 90 | 19⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic Telephoto 384-35 | Standard | 1200 | 330 | 165 | 10⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res - 640-19/Plus 640-19 | High | 960 | 240 | 120 | 23⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res Telephoto 640-35/Plus 640-35 | High | 1750 | 440 | 220 | 12⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
