Trailblazer 384 Grille Mount Analog
384 Grille Mount Analog

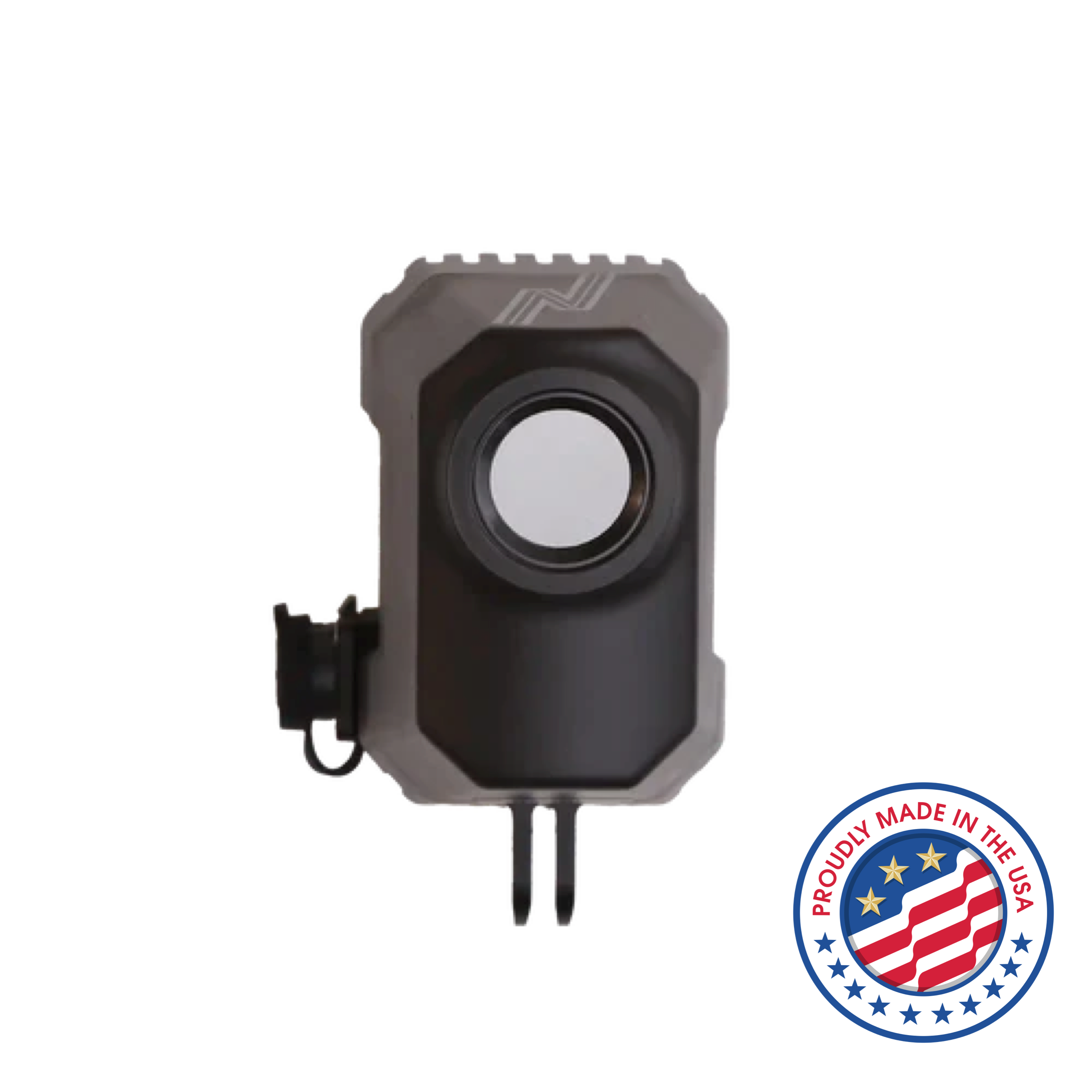

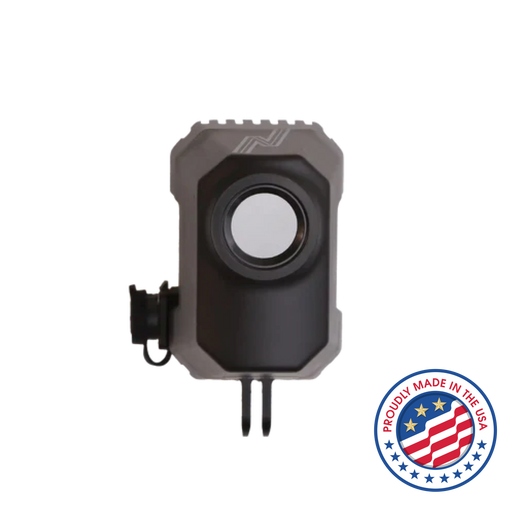

The NightRide Trailblazer 384 Grille Mount – Analog is a rugged, compact thermal imaging system designed for discreet grille integration. With analog RCA connectivity and durable IP69 construction, it provides instant thermal streaming for both professional and recreational vehicle applications.

Trailblazer 384 Grille Mount Analog
Trailblazer 384 Grille Mount Analog

NightRide
Trailblazer 384 Grille Mount Analog
384 Grille Mount Analog

USD $1,995

The NightRide Trailblazer 384 Grille Mount – Analog is a rugged, compact thermal imaging system designed for discreet grille integration. With analog RCA connectivity and durable IP69 construction, it provides instant thermal streaming for both professional and recreational vehicle applications.

NRR0010-GA
Find A Dealer
Full Lineup

ALL NIGHTRIDE PRODUCTS ARE SOLD THROUGH AUTHORIZED DEALERS WHO MAY OFFER THIS PRODUCT AT A DISCOUNT. FOR A LIST OF AUTHORIZED DEALERS VISIT OUR DEALER PAGE.

DEALER INQUIRIES WELCOMED. PLEASE EMAIL US AT contact@getnightride.com

For International Customers-shipping, customs, and taxes are not included in the list price.

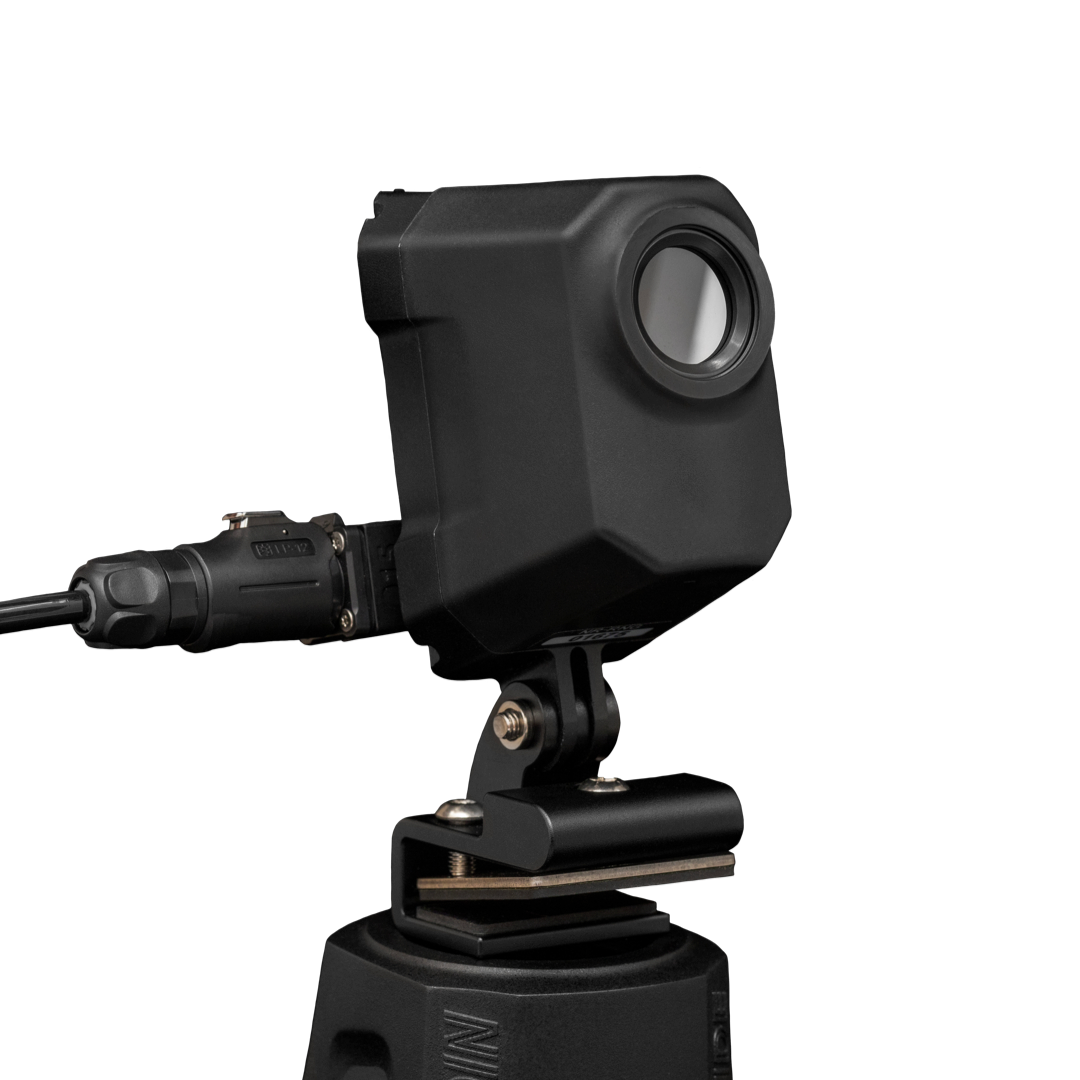

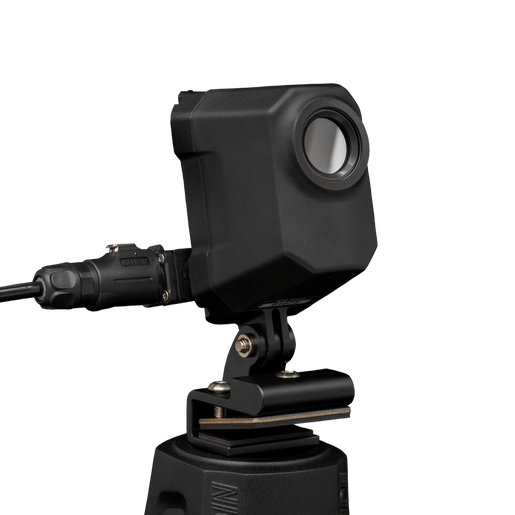

Equipped with a 384 x 288 uncooled micro-bolometer and a 9mm lens, the Trailblazer 384 Grille Mount detects heat signatures up to 480 yards away, even in complete darkness, fog, rain, snow, or smoke. A 90° connector allows for easy grille mounting, while installation is quick using the included hood mount hardware. Video streams directly to any RCA-compatible monitor, powered via a USB port on the display. Built with IP69 sealing, the unit withstands extreme environments with just 4W of power draw, delivering reliable 30hz imaging for situational awareness and safety.

Specifications

  • Dimensions: 7 ¼” x 6 ⅜” x 6 ¾”
  • Weight: 6 ounces
  • Operating Temp: -40°F to +140°F
  • Sealed Design: IP69 rated
  • Sensor Type: 384 x 288 uncooled micro-bolometer
  • Lens: 9mm
  • Field of View: 29° (H)
  • Frame Rate: 30hz
  • Power Consumption: 4W
  • Power Requirements: 5 VDC (powered by monitor USB)

Main Features

  • Vehicle Hood Mount included
  • 90° connector for streamlined grille mounting
  • Analog (RCA) connection for direct monitor streaming
  • Fast and simple installation
  • Rugged IP69 sealed design

Range

Detection Recognition Identification
480 yards 120 yards 60 yards

Accessories

  • Standard Hood Mount
  • Hood Mount Tools and Accessories
  • Analog (RCA) + USB Cable
  • Velcro Ties (x4)
  • Note: Grille mount not included

Full Situational Awareness

The Trailblazer enhances operational confidence by delivering visibility where headlights cannot. Whether navigating in low-light conditions, extreme weather, or tactical applications, it provides the crucial seconds needed for safer, more informed decision-making.

Not Certain Which NightRide to Choose?

*Table scrolls horizontally

Model Resolution Detection* (in Yards) Recognition* (in Yards) Identification* (in Yards) Field of View WiFi Frequency to Display Wired via Ethernet Remote Control Mounting Sample Use Cases
NightRide Trailblazer Standard 480 120 60 28⁰ 2.4 Ghz No No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer w Ethernet Standard 480 120 60 28⁰ 2.4 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Trailblazer HighRes 640 High 660 180 90 28⁰ 5 Ghz Yes No GoPro, on/off vehicle Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting
NightRide Sentinel Standard 480 120 60 28⁰ 2.4 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide Sentinel 640-13 High 660 180 90 28⁰ 5 Ghz Yes Hardwired Remote Control Pan Permanent on LightBar or Vehicle Roof Public safety, security, remote surveillance
NightRide PRO-SL (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz No Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL w Ethernet (Ring or Cableless) Standard 480 120 60 28⁰ 2.4 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide PRO-SL 640 (Ring or Cableless) High 660 180 90 28⁰ 5 Ghz Yes Manual Pan/Tilt Permanent on Police Spotlight Police patrol cars
NightRide 360 Classic 384-13 Standard 480 120 60 28⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic 384-19 Standard 660 180 90 19⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 Classic Telephoto 384-35 Standard 1200 330 165 10⁰ 2.4 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res - 640-19/Plus 640-19 High 960 240 120 23⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
NightRide 360 High Res Telephoto 640-35/Plus 640-35 High 1750 440 220 12⁰ 5 Ghz Yes Wireless Remote Control Pan/Tilt Magnetic on Roof Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management
