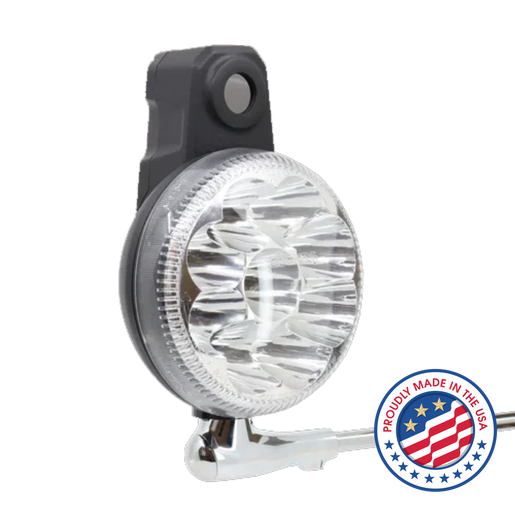

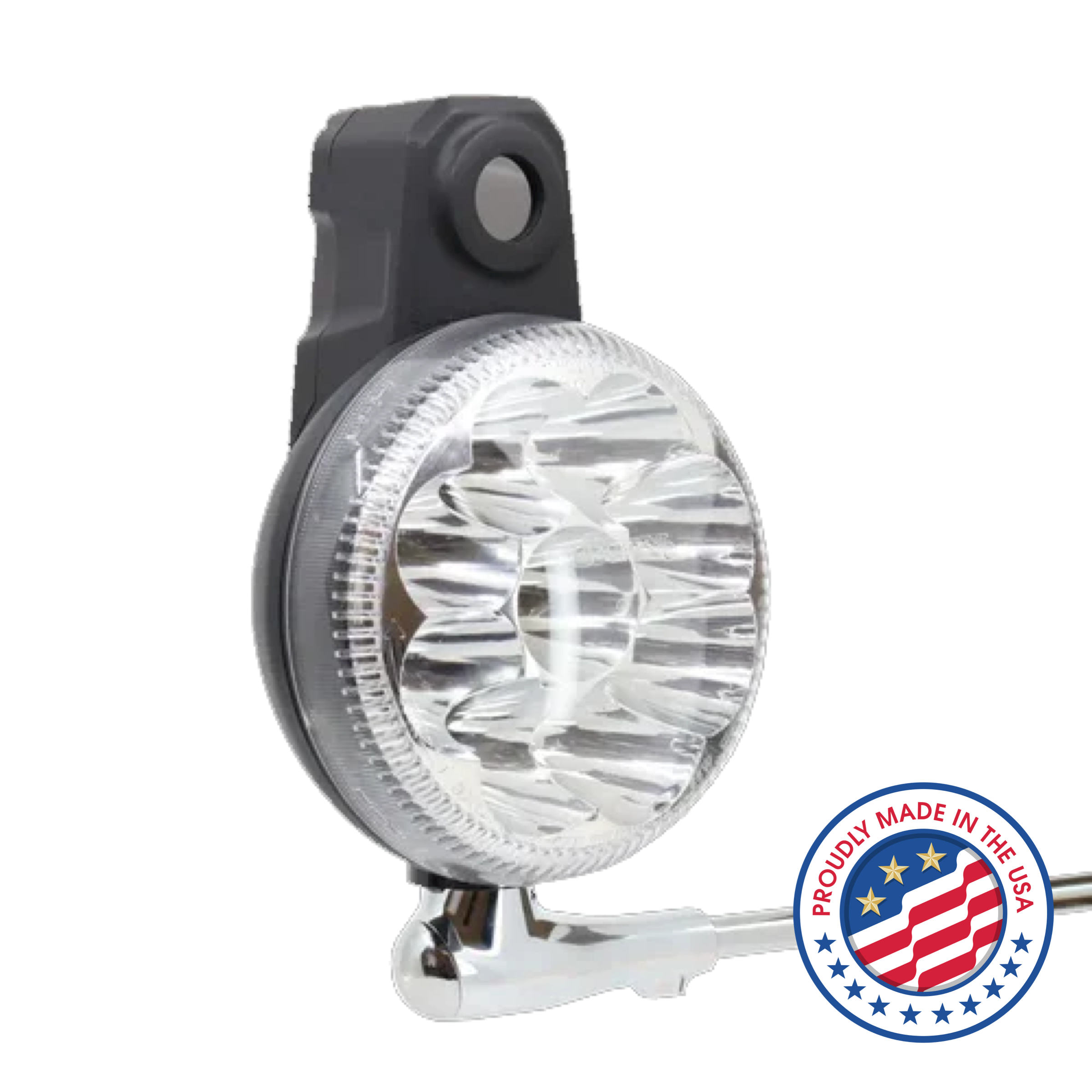

NightRide

S04/S14 (Bowl) 640 Analog







NightRide

S04/S14 (Bowl) 640 Analog
Regular price
USD $4,925
NRP-SLC640A
With a 640 x 512 thermal sensor and a wide 48° field of view, the Pro-SL S04/S14 (Bowl) 640 detects heat signatures beyond a quarter mile—even through fog, smoke, rain, snow, or dust. The Unity S04 or S14 Spotlight Mount and replacement bowl provide quick installation, while RCA analog connection streams video directly to monitors. Power is supplied via USB-A 3.1 connection, and the unit includes mechanical pan/tilt control for expanded coverage. Built tough with an IP67-sealed design, this system performs reliably in extreme environments while consuming just 3W of power.
Specifications
- Dimensions: 9 ½” x 6 ½” x 3”
- Weight: 9 ounces
- Operating Temperature Range: -40°F to +140°F
- Sealed Design: IP67
- Sensor Type: 640 x 512 thermal sensor
- Field of View: 48° (H)
- Frame Rate: 30hz
- Power Consumption: 3W
- Power Requirements: 5V via USB-A 3.1 port
Main Features
- High-resolution 640 x 512 thermal imaging
- Unity S04 or S14 Spotlight Mount
- Quick installation with replacement bowl
- RCA analog connection to monitor
- USB-A 3.1 power connection
- Mechanical pan/tilt functionality
- Rugged IP67 sealed design
Range
Detection | Recognition | Identification |
---|---|---|
660 yards | 180 yards | 90 yards |
Accessories
- RCA + USB Power Cable with Coil
- USB to USB-C Adapter
- USB Dust Cap
- Heat Shrink Tubing
- User Manual
Full Situational Awareness
Not Certain Which NightRide to Choose?
*Table scrolls horizontally
Model | Resolution | Detection* (in Yards) | Recognition* (in Yards) | Identification* (in Yards) | Field of View | WiFi Frequency to Display | Wired via Ethernet | Remote Control | Mounting | Sample Use Cases |
NightRide Trailblazer | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer w Ethernet | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer HighRes 640 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Sentinel | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide Sentinel 640-13 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide PRO-SL (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL w Ethernet (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL 640 (Ring or Cableless) | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide 360 Classic 384-13 | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic 384-19 | Standard | 660 | 180 | 90 | 19⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic Telephoto 384-35 | Standard | 1200 | 330 | 165 | 10⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res - 640-19/Plus 640-19 | High | 960 | 240 | 120 | 23⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res Telephoto 640-35/Plus 640-35 | High | 1750 | 440 | 220 | 12⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
