NightRide

S04/S14 (Bowl) 384 Analog




NightRide

S04/S14 (Bowl) 384 Analog
Regular price
USD $3,250
NRP-SLC-A

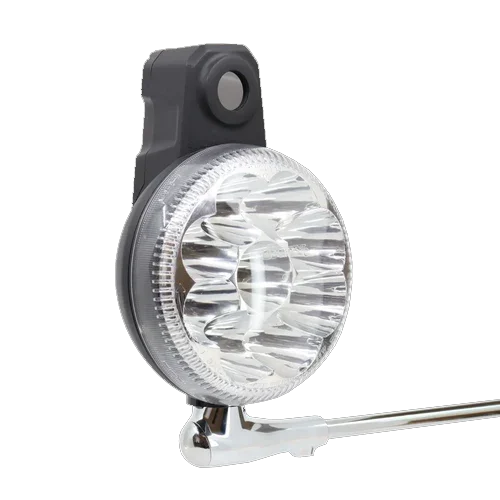

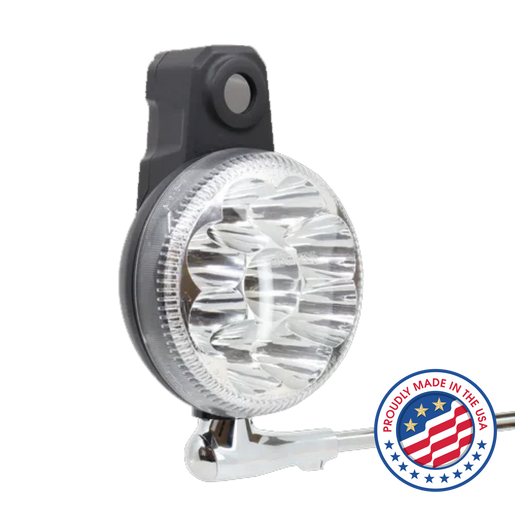

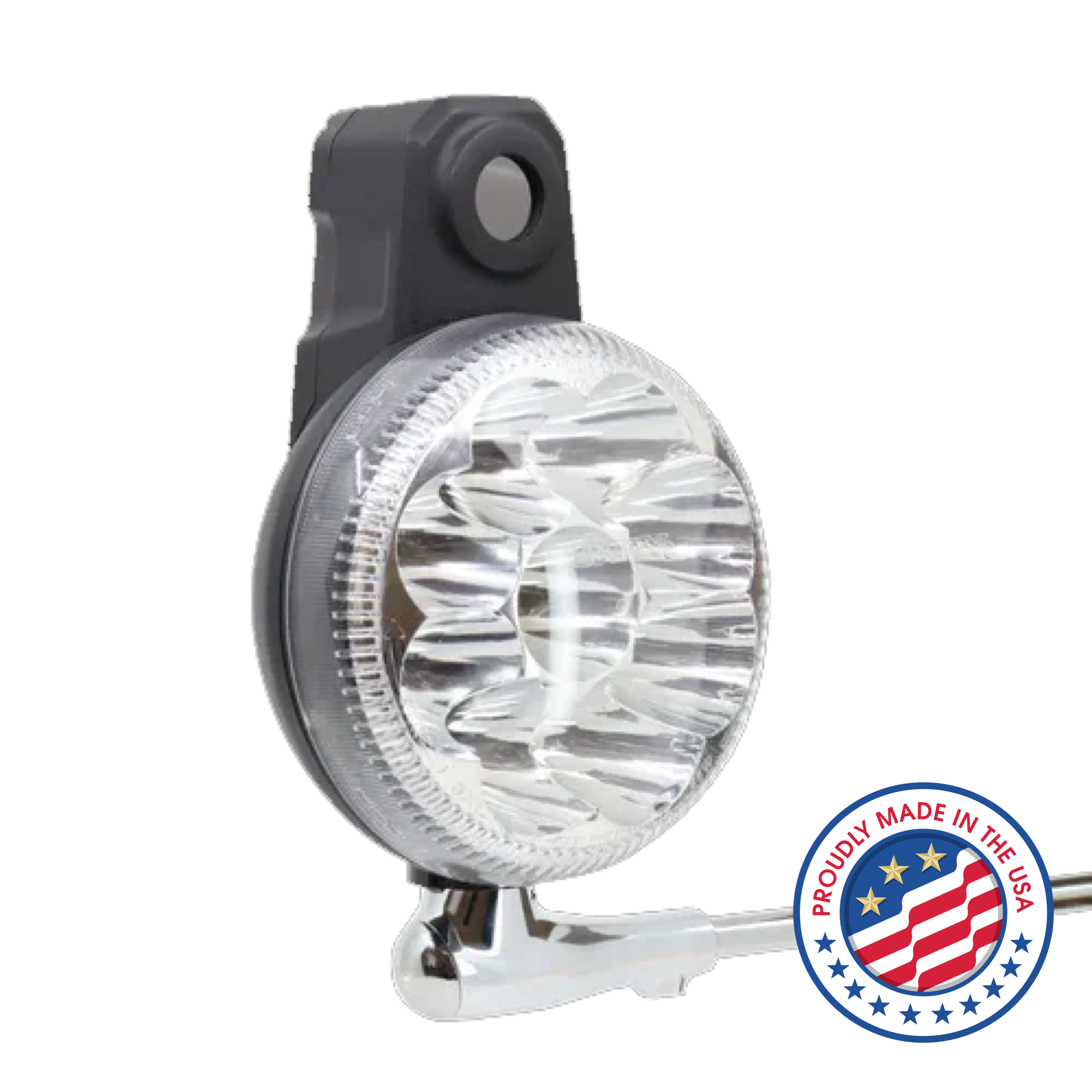

Equipped with a 384 x 288 thermal sensor and a 29° field of view, the Pro-SL S04/S14 (Bowl) 384 detects heat signatures beyond a quarter mile through adverse conditions including rain, snow, fog, smoke, and dust. The Unity S04 or S14 Spotlight Mount with replacement bowl ensures fast installation, while RCA analog connection streams video to a monitor. Powered through USB-A 3.1, the system offers mechanical pan/tilt functionality and low 3W power consumption. With its IP67-sealed design, the Pro-SL withstands harsh environments without compromising performance.
Specifications
- Dimensions: 9 ½” x 6 ½” x 3”
- Weight: 9 ounces
- Operating Temperature Range: -40°F to +140°F
- Sealed Design: IP67
- Sensor Type: 384 x 288 thermal sensor
- Field of View: 29° (H)
- Frame Rate: 30hz
- Power Consumption: 3W
- Power Requirements: 5V via USB-A 3.1 port
Main Features
- Standard-resolution 384 x 288 thermal imaging
- Unity S04 or S14 Spotlight Mount
- Quick installation with replacement bowl
- RCA analog connection to monitor

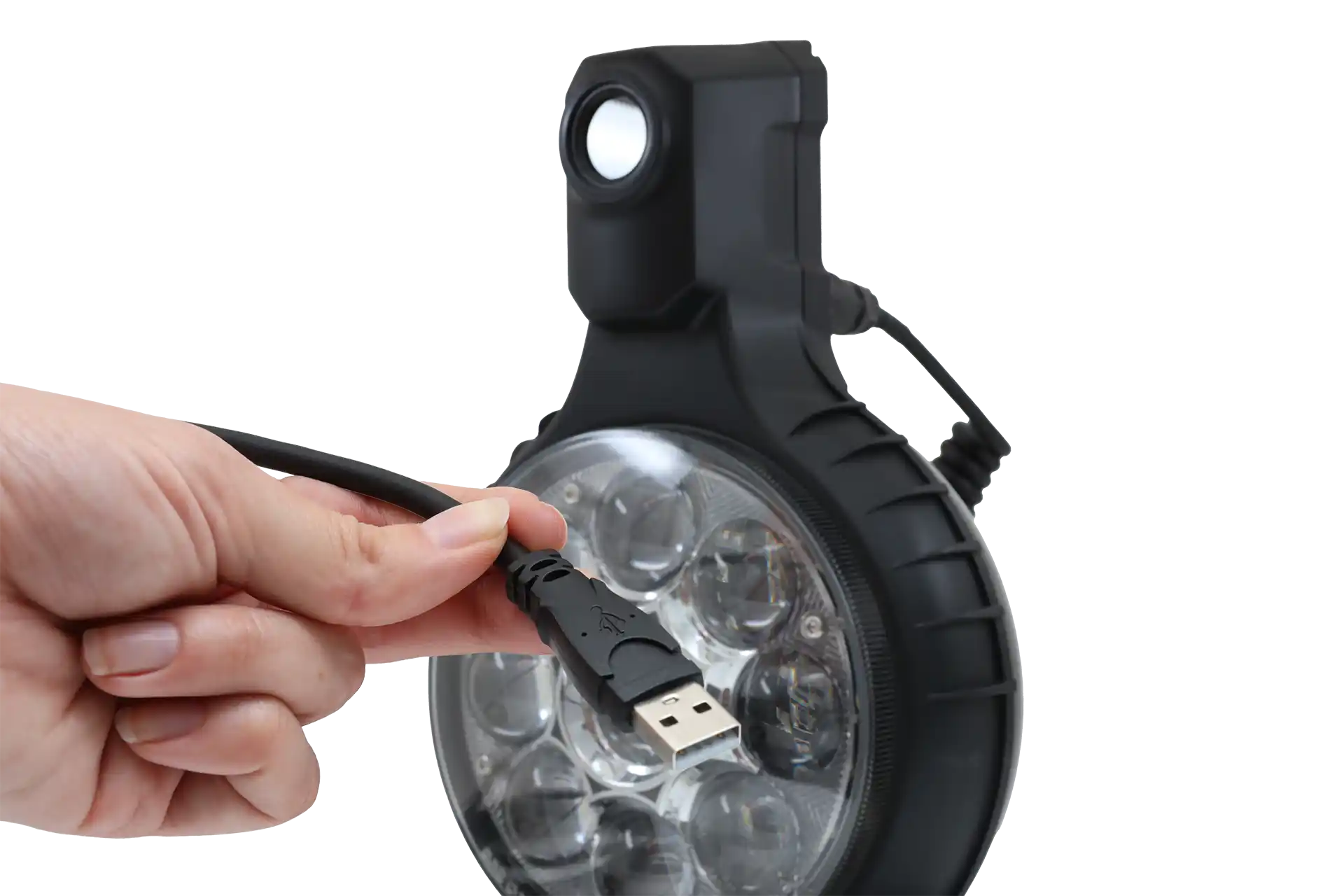

- USB power via console or monitor port
- Mechanical pan/tilt functionality
- Rugged IP67-sealed design
Range
Detection | Recognition | Identification |
---|---|---|
480 yards | 120 yards | 60 yards |
Accessories
- RCA + USB Power Cable with Coil
- USB to USB-C Adapter
- USB Dust Cap
- Heat Shrink Tubing
- User Manual
Full Situational Awareness
Not Certain Which NightRide to Choose?
*Table scrolls horizontally
Model | Resolution | Detection* (in Yards) | Recognition* (in Yards) | Identification* (in Yards) | Field of View | WiFi Frequency to Display | Wired via Ethernet | Remote Control | Mounting | Sample Use Cases |
NightRide Trailblazer | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer w Ethernet | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer HighRes 640 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Sentinel | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide Sentinel 640-13 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide PRO-SL (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL w Ethernet (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL 640 (Ring or Cableless) | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide 360 Classic 384-13 | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic 384-19 | Standard | 660 | 180 | 90 | 19⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic Telephoto 384-35 | Standard | 1200 | 330 | 165 | 10⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res - 640-19/Plus 640-19 | High | 960 | 240 | 120 | 23⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res Telephoto 640-35/Plus 640-35 | High | 1750 | 440 | 220 | 12⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
