NightRide

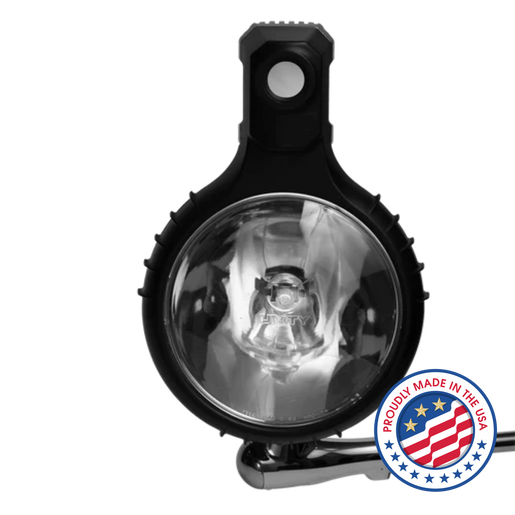

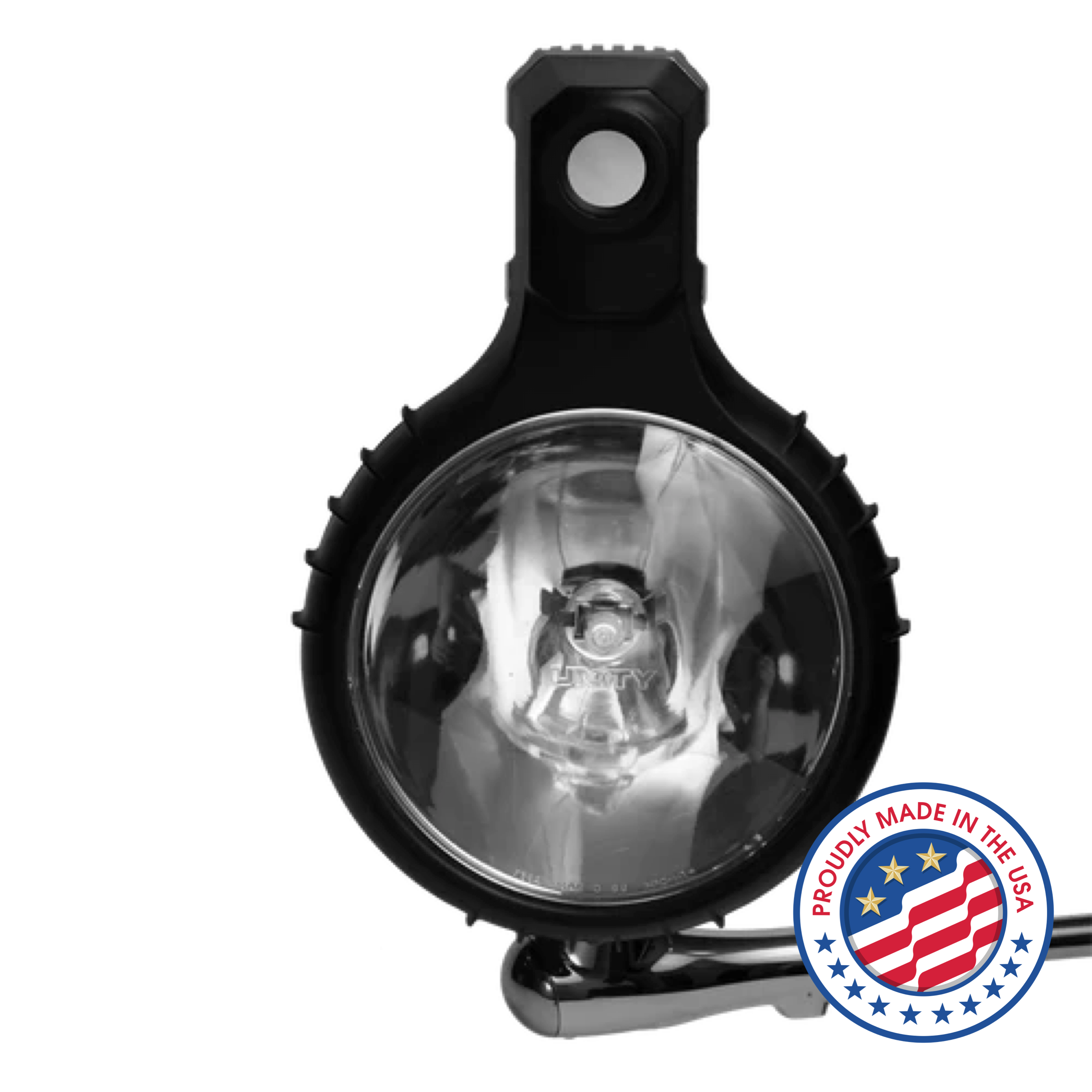

S04 (Ring) Analog 640







NightRide

S04 (Ring) Analog 640
Regular price
USD $4,340
NRP-SL640A

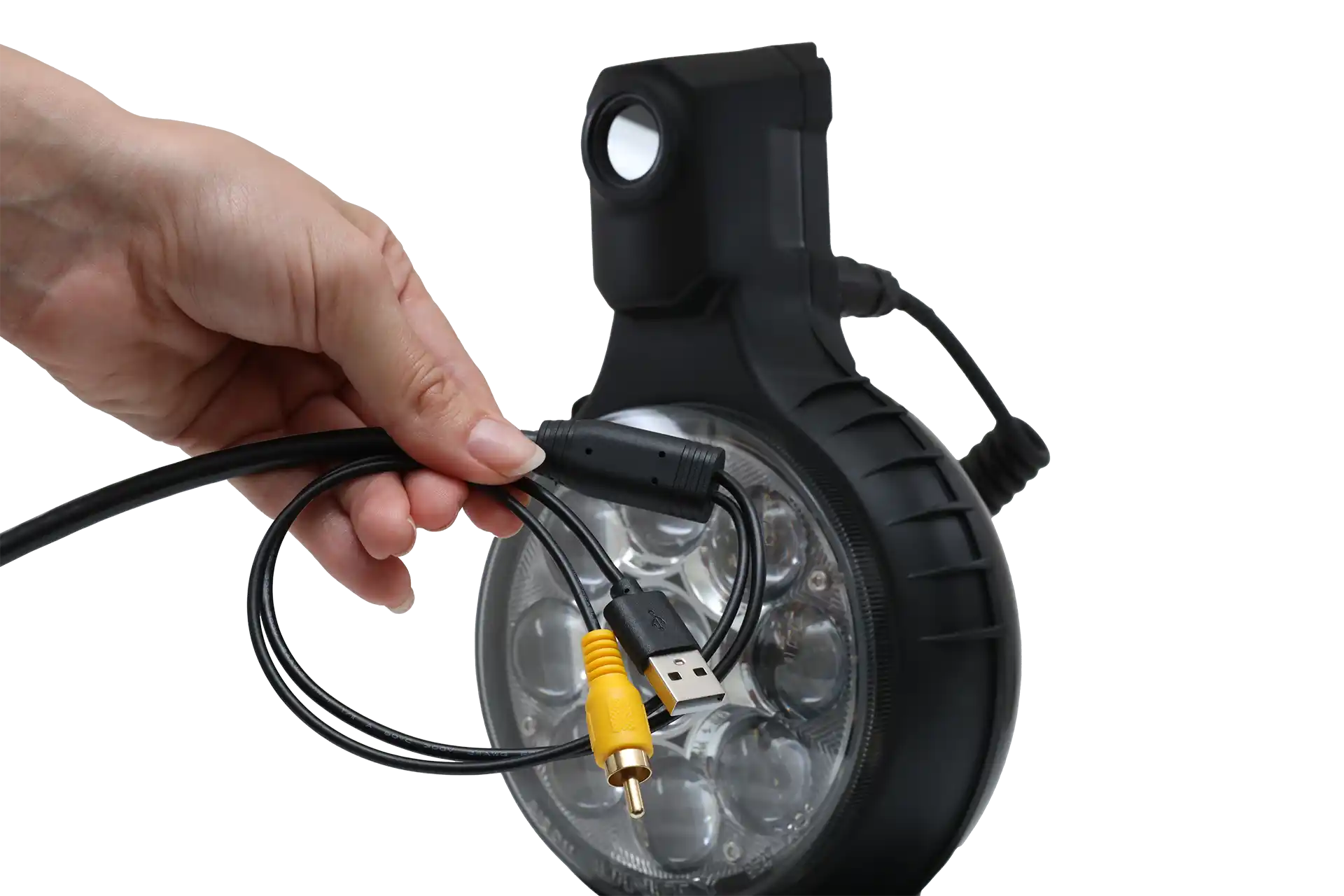

Equipped with a powerful 640 x 512 thermal sensor and a wide 48° field of view, the Pro-SL S04 provides exceptional image detail and detection range through dust, smoke, rain, snow, or fog. Its Unity S04 Spotlight Mount and replacement ring make it easy to retrofit or install on new builds, while RCA analog connectivity ensures seamless streaming to a monitor. Powered through a standard USB port, it operates efficiently with only 3W of consumption. The built-in mechanical pan/tilt system expands coverage, and its IP67-sealed design withstands extreme temperatures (-40°F to +140°F).
Specifications
- Dimensions: 9 ½” x 6 ½” x 3”
- Weight: 9 ounces
- Operating Temperature Range: -40°F to +140°F
- Sealed Design: IP67
- Sensor Type: 640 x 512
- Field of View: 48° (H)
- FPS: 30hz
- Power Consumption: 3W
- Power Requirements: 5 volts from USB-A 3.1 port on monitor or console USB
Main Features
- High Resolution
- Unity S04 Spotlight Mount
- Suitable for vehicle retrofits as well as new builds
- Quick installation with replacement ring
- Analog (RCA) connection to monitor for streaming
- USB connection to 5 volts via monitor or console USB port for power
- Mechanical Pan/Tilt
Range
Detection | Recognition | Identification |
---|---|---|
660 Yards | 180 Yards | 90 yards |
Accessories
- RCA + USB Power Cable with Coil
- USB to USB-C adapter
- USB Dust Cap
- Heat Shrink Tubing
- User Manual
Full Situational Awareness
Not Certain Which NightRide to Choose?
*Table scrolls horizontally
Model | Resolution | Detection* (in Yards) | Recognition* (in Yards) | Identification* (in Yards) | Field of View | WiFi Frequency to Display | Wired via Ethernet | Remote Control | Mounting | Sample Use Cases |
NightRide Trailblazer | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer w Ethernet | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer HighRes 640 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Sentinel | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide Sentinel 640-13 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide PRO-SL (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL w Ethernet (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL 640 (Ring or Cableless) | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide 360 Classic 384-13 | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic 384-19 | Standard | 660 | 180 | 90 | 19⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic Telephoto 384-35 | Standard | 1200 | 330 | 165 | 10⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res - 640-19/Plus 640-19 | High | 960 | 240 | 120 | 23⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res Telephoto 640-35/Plus 640-35 | High | 1750 | 440 | 220 | 12⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
