NightRide

S04 (Ring) Analog 384







NightRide

S04 (Ring) Analog 384
Regular price
USD $3,000
NRP-SL-A

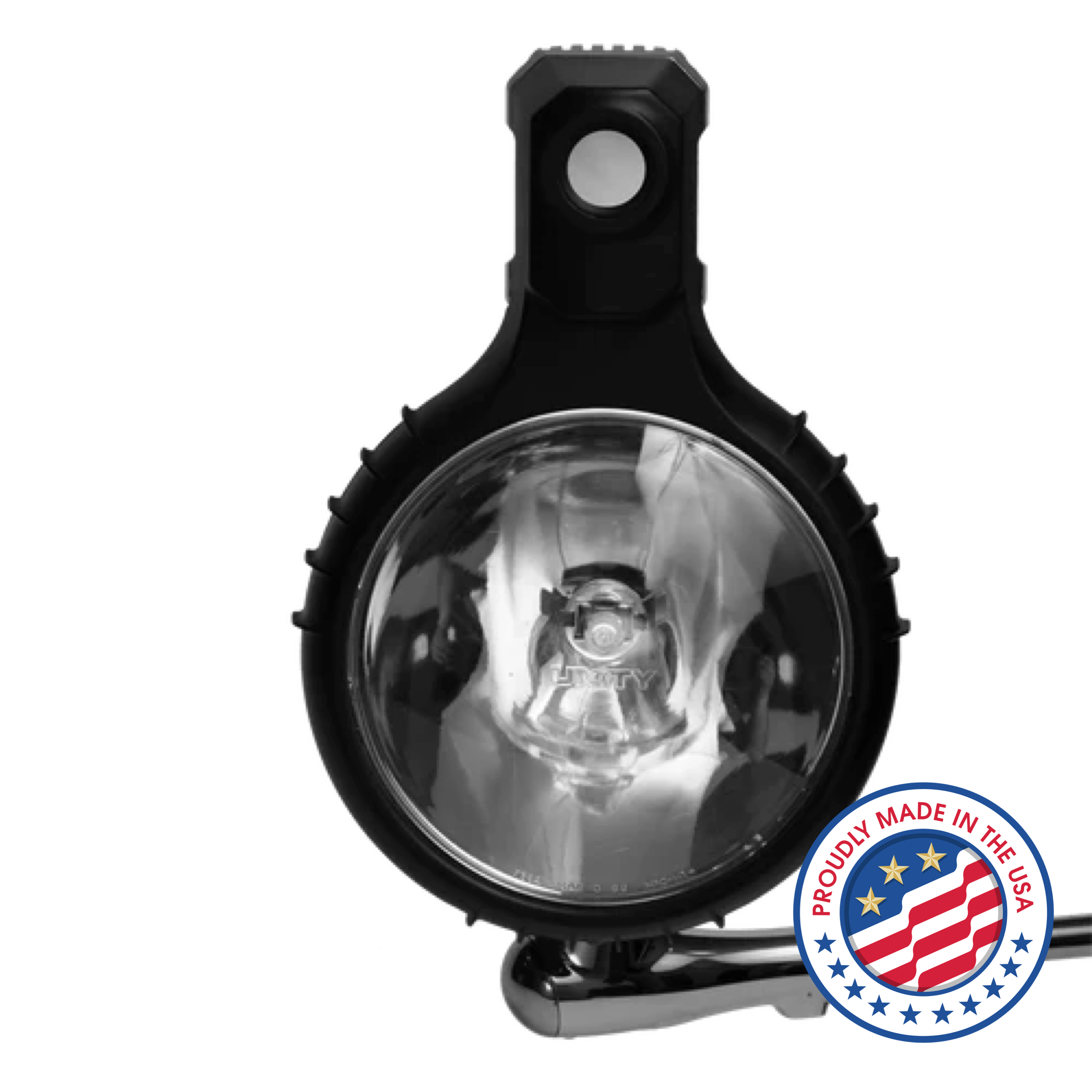

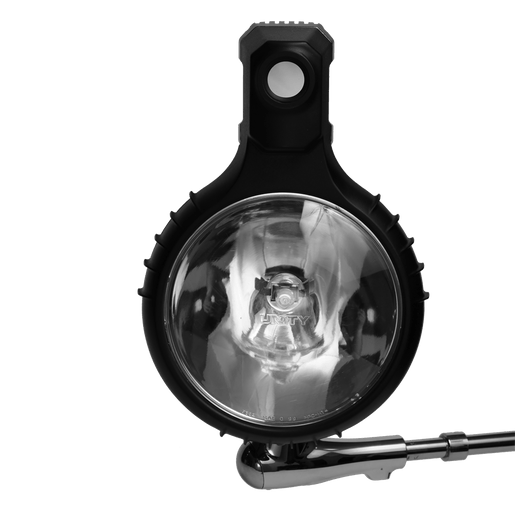

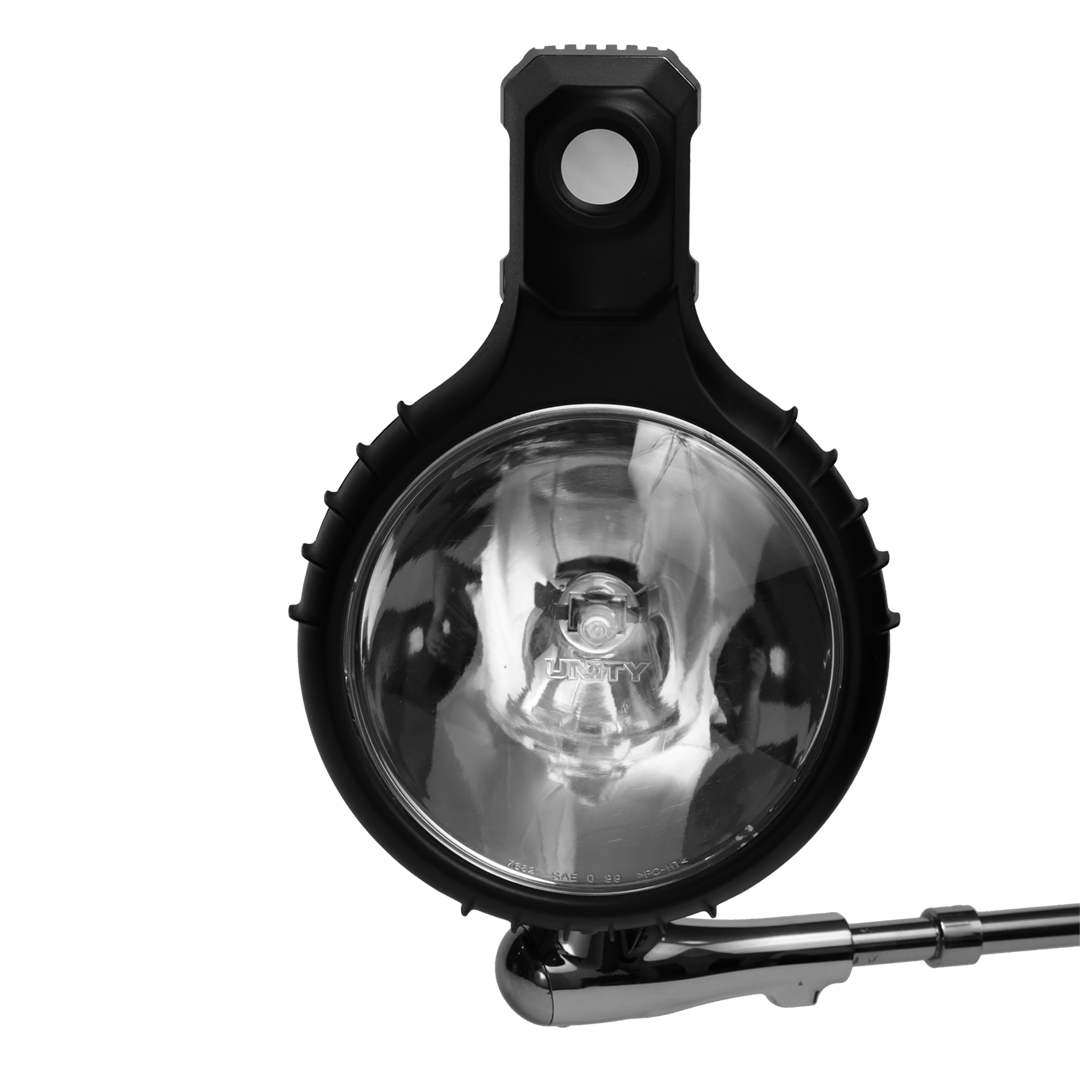

Featuring a 384 x 288 thermal sensor with a 29° field of view, the Pro-SL S04 detects heat signatures beyond a quarter mile—even through dust, smoke, rain, snow, or fog. Its Unity S04 Spotlight Mount with replacement ring enables rapid, secure installation on retrofits or new builds. Streaming is simple via RCA analog connection to a monitor, with power supplied through a USB port. The mechanical pan/tilt system ensures flexible coverage, while its IP67-sealed design provides durability in extreme conditions (-40°F to +140°F).
Specifications
- Dimensions: 9 ½” x 6 ½” x 3”
- Weight: 9 ounces
- Operating Temperature Range: -40°F to +140°F
- Sealed Design: IP67
- Sensor Type: 384 x 288
- Field of View: 29° (H)
- FPS: 30hz
- Power Consumption: 3W
- Power Requirements: 5 volts from USB-A 3.1 port on monitor or console USB
Main Features
- Unity S04 Spotlight Mount
- Quick installation with replacement ring
- Suitable for vehicle retrofits as well as new builds

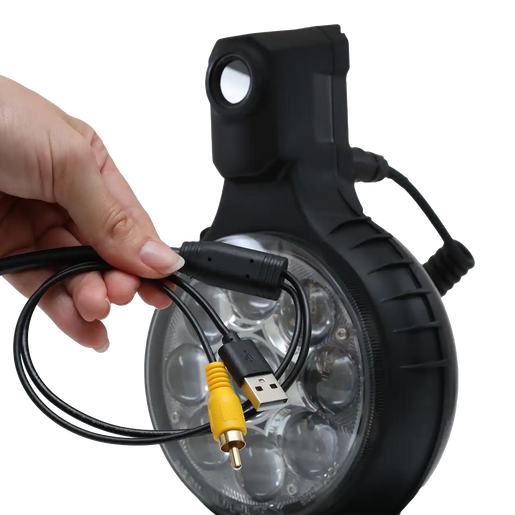

- Analog (RCA) connection to monitor for streaming
- Mechanical Pan/Tilt
Range
Detection | Recognition | Identification |
---|---|---|
660 Yards | 180 Yards | 90 yards |
Accessories
- RCA + USB Power Cable with Coil
- USB to USB-C adapter
- USB Dust Cap
- Heat Shrink Tubing
- User Manual
Full Situational Awareness
Not Certain Which NightRide to Choose?
*Table scrolls horizontally
Model | Resolution | Detection* (in Yards) | Recognition* (in Yards) | Identification* (in Yards) | Field of View | WiFi Frequency to Display | Wired via Ethernet | Remote Control | Mounting | Sample Use Cases |
NightRide Trailblazer | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer w Ethernet | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Trailblazer HighRes 640 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
NightRide Sentinel | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide Sentinel 640-13 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
NightRide PRO-SL (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL w Ethernet (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide PRO-SL 640 (Ring or Cableless) | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
NightRide 360 Classic 384-13 | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic 384-19 | Standard | 660 | 180 | 90 | 19⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 Classic Telephoto 384-35 | Standard | 1200 | 330 | 165 | 10⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res - 640-19/Plus 640-19 | High | 960 | 240 | 120 | 23⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
NightRide 360 High Res Telephoto 640-35/Plus 640-35 | High | 1750 | 440 | 220 | 12⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
