NightRide
S04 (Ring) 384 w/ Ethernet
NightRide
S04 (Ring) 384 w/ Ethernet
Regular price
USD $4,340
NRP-SL640

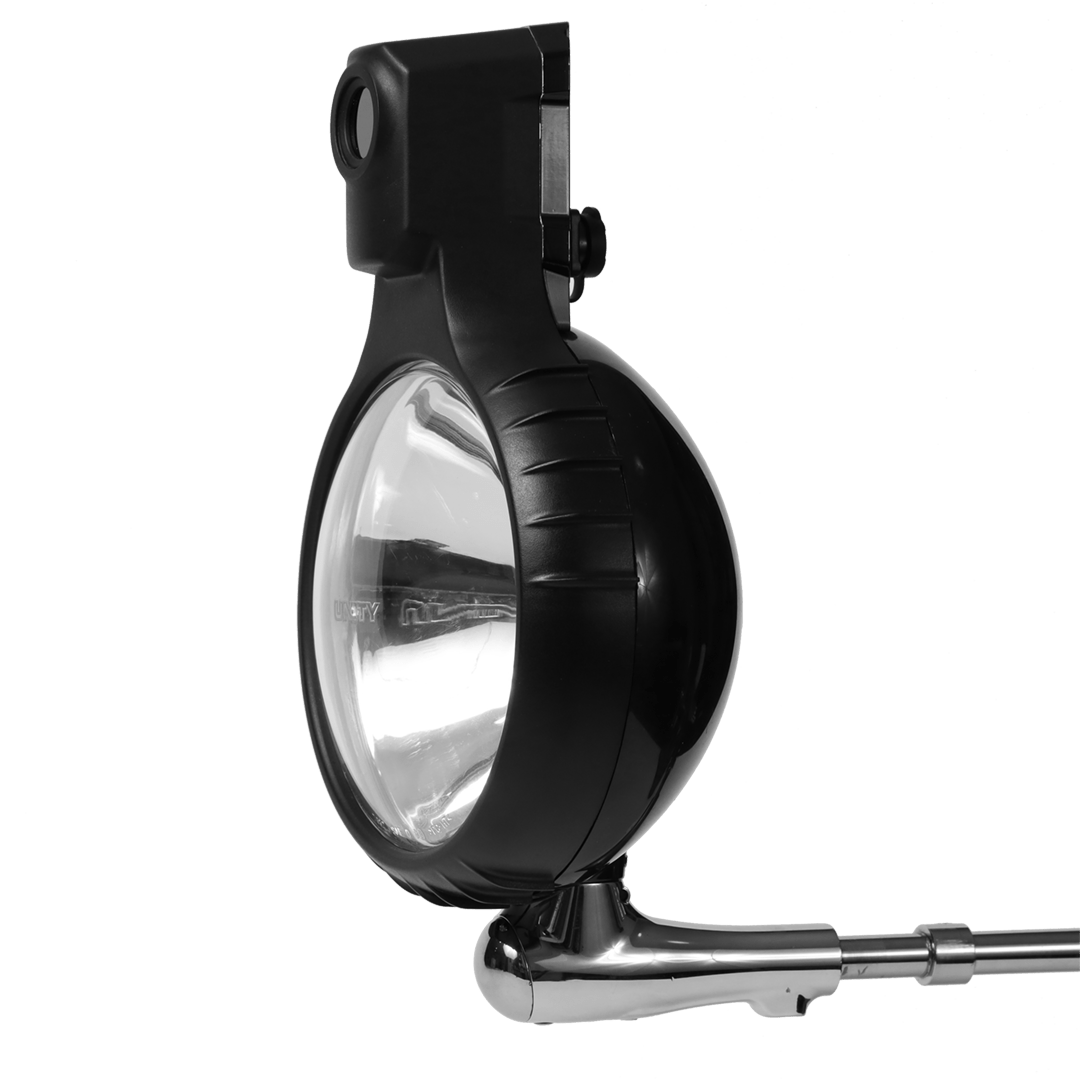

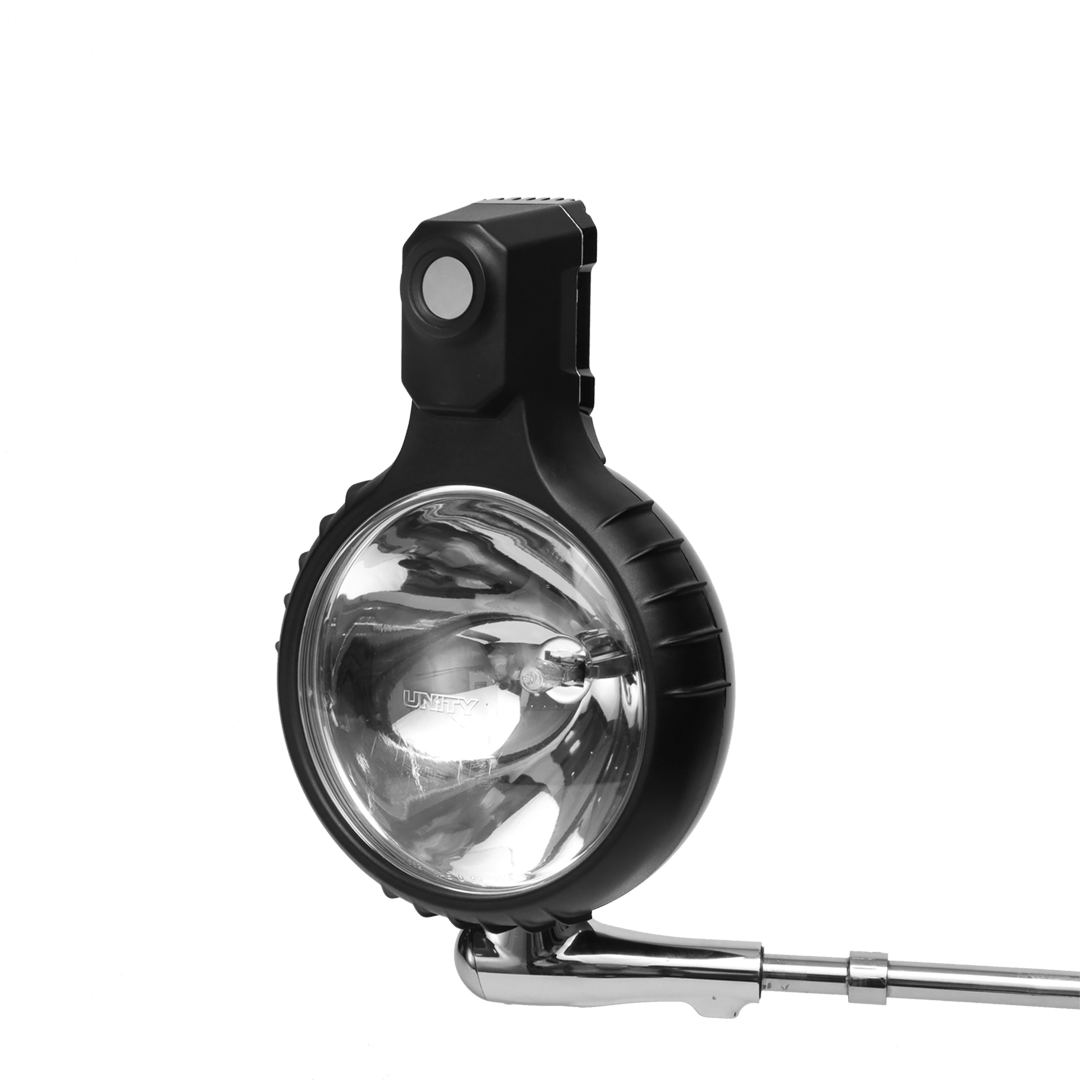

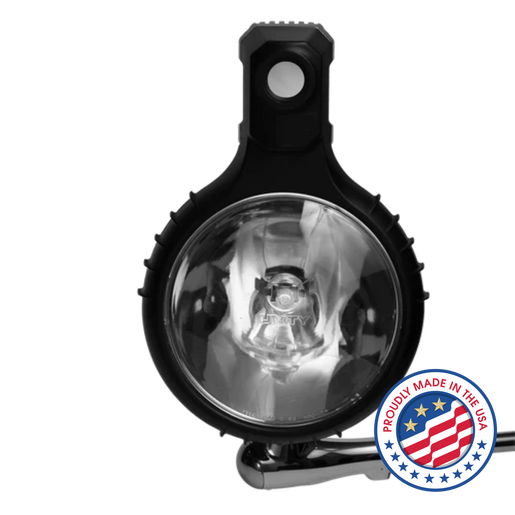

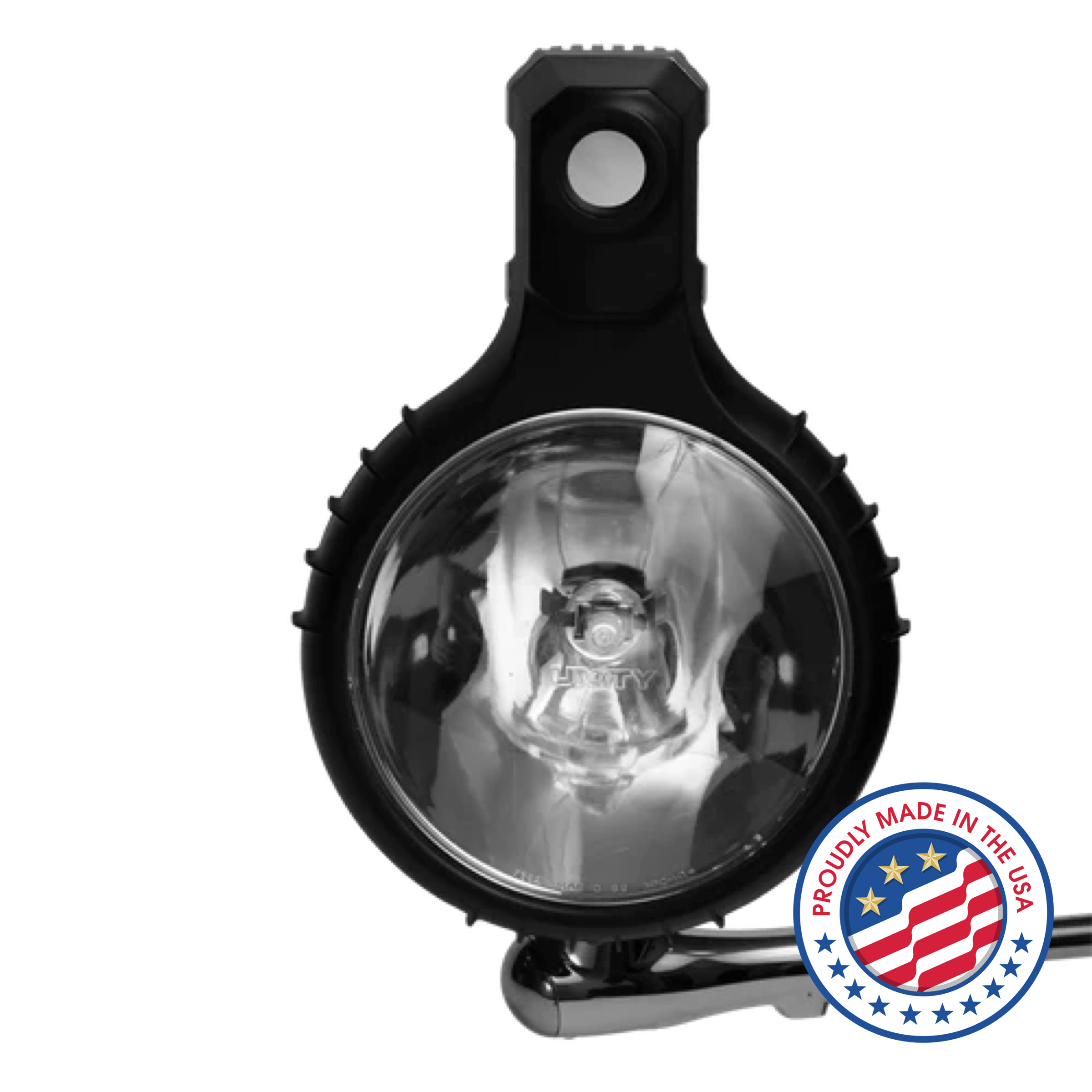

Featuring a 640 x 512 thermal sensor with a 28° field of view, the Pro-SL 384 w/ Ethernet detects heat signatures over a quarter mile away, even through fog, smoke, rain, snow, or dust. The unit installs quickly using a replacement bowl and handle, while Wi-Fi hotspot or Ethernet connectivity ensures flexible display options. It can also act as an access client to in-vehicle routers, and an optional HDMI adaptor allows monitor connection. With mechanical pan/tilt control, rugged IP67 sealing, and efficient 3W power consumption, the Pro-SL is engineered for both reliability and adaptability in the field.
Specifications
- Dimensions: 9 ½” x 6 ½” x 3”
- Weight: 9 ounces
- Operating Temperature Range: -40°F to +140°F
- Sealed Design: IP67
- Sensor Type: 640 x 512 thermal sensor
- Field of View: 28° (H)
- Frame Rate: 25hz
- Power Consumption: 3W
- Power Requirements: 12–16 VDC
Main Features

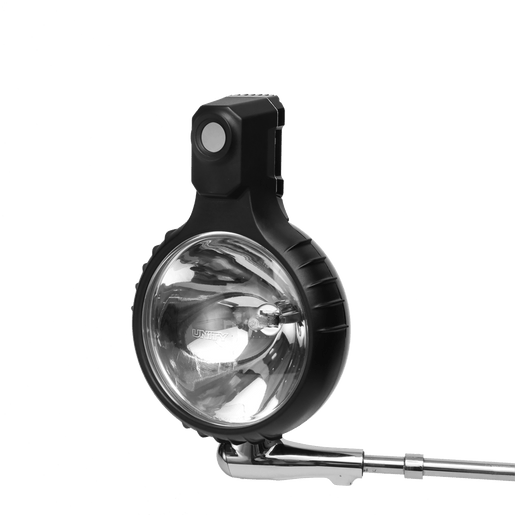

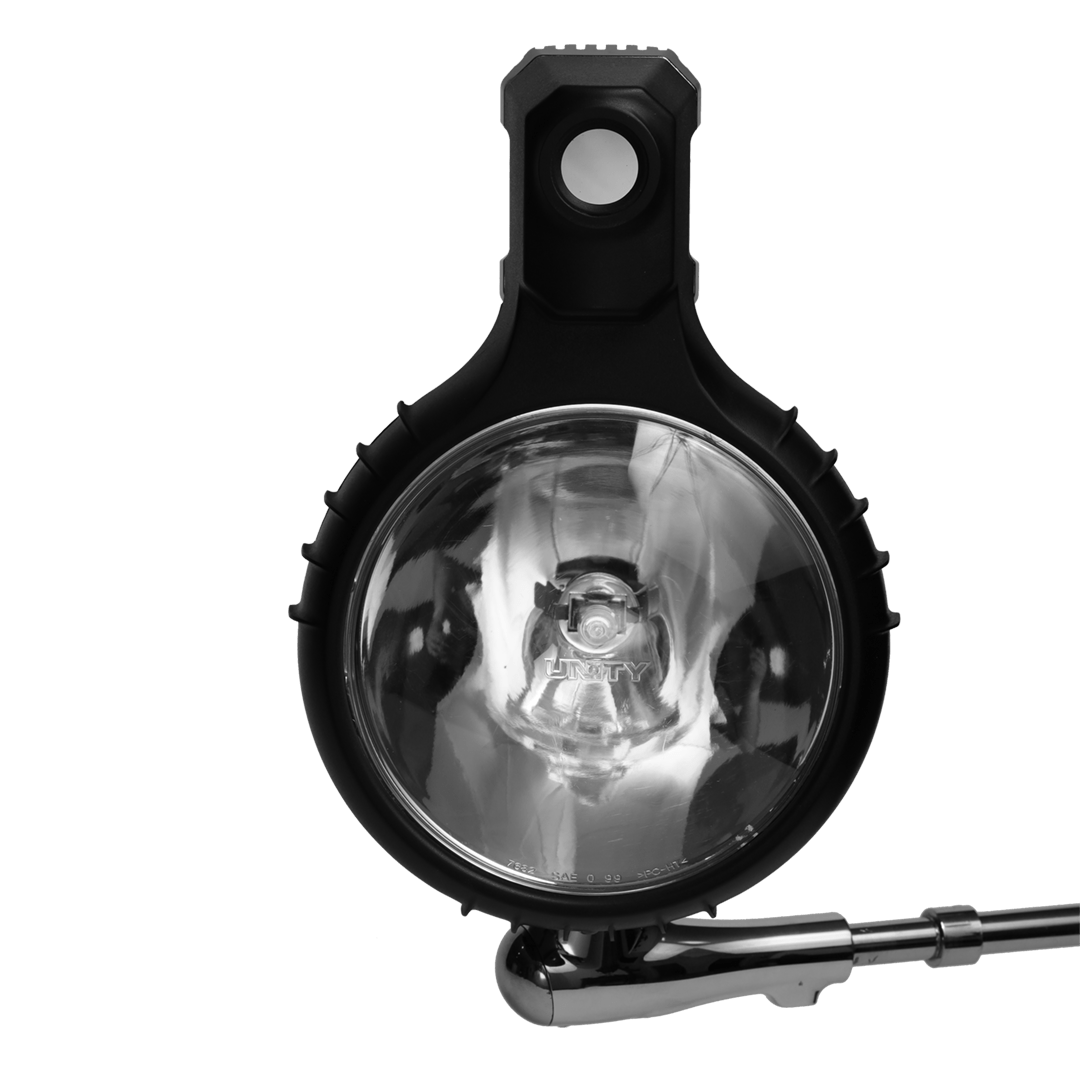

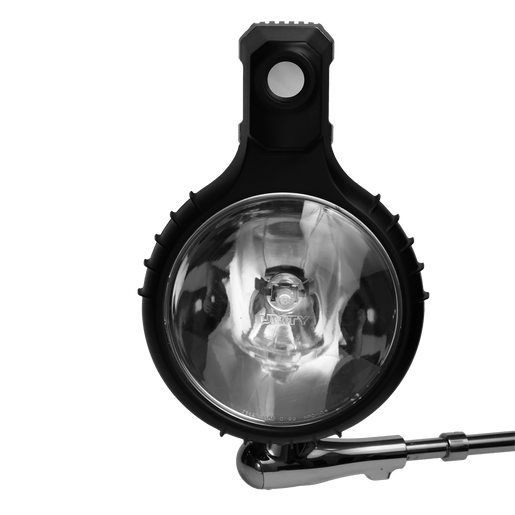

- Unity S04 Spotlight Mount

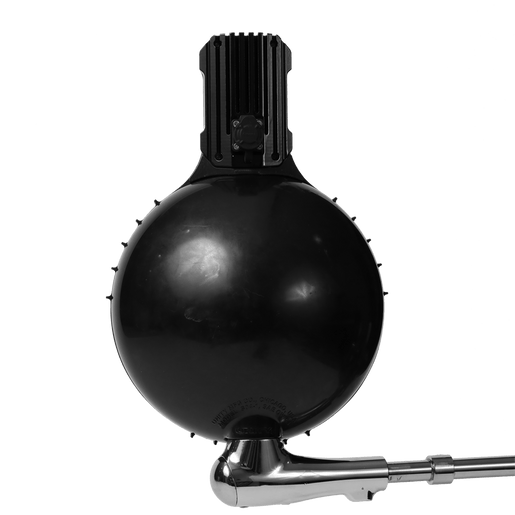

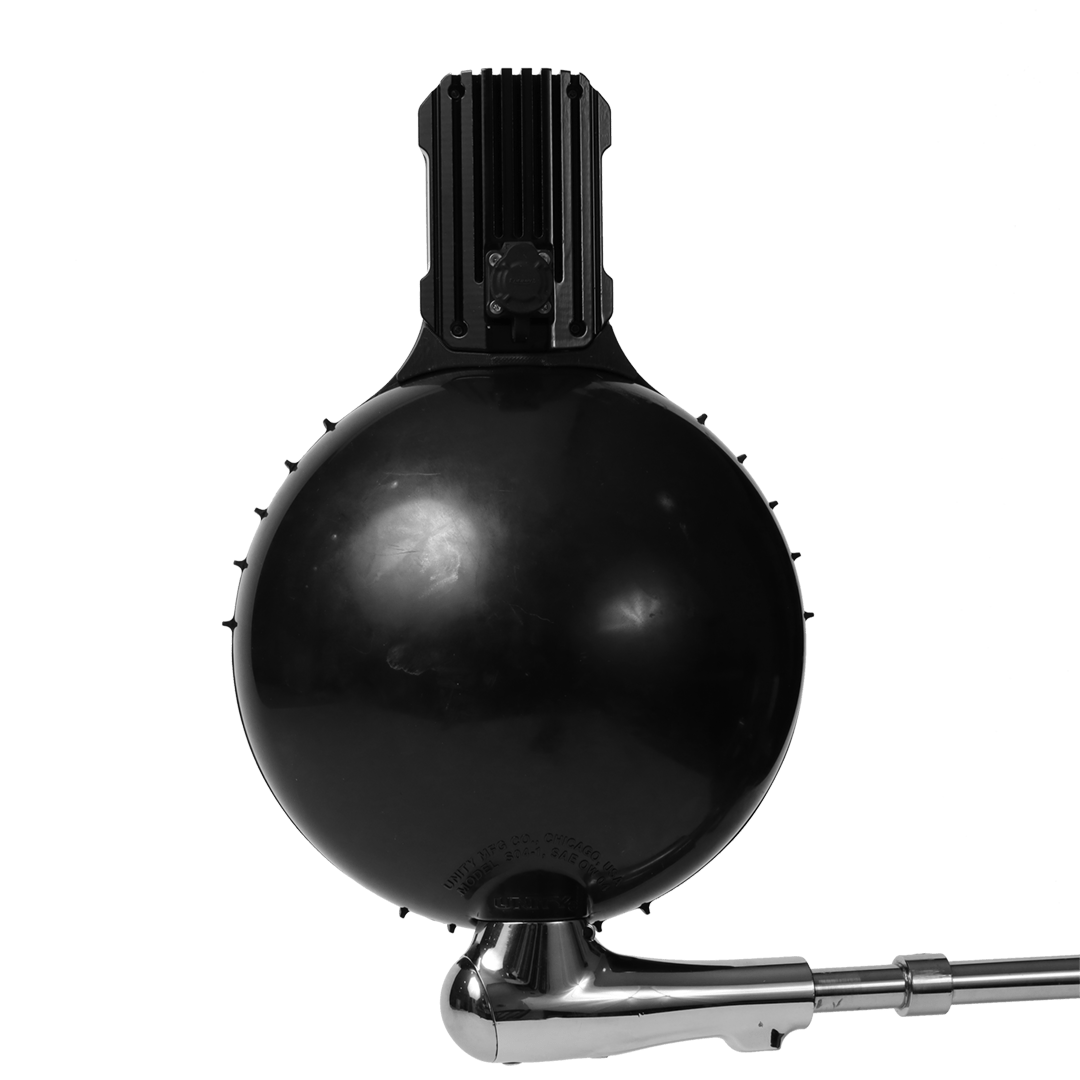

- Quick installation with replacement bowl and handle

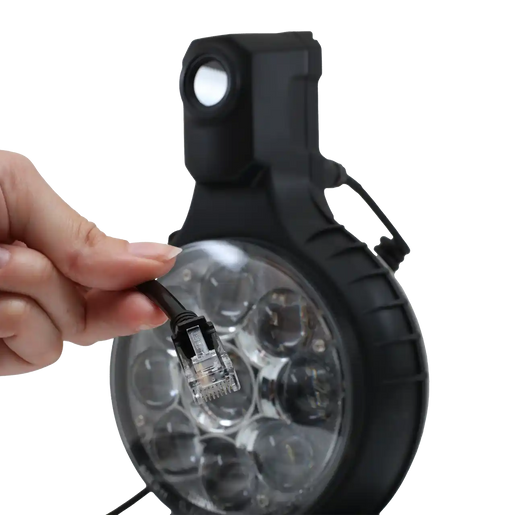

- Wi-Fi hotspot or Ethernet display connection
- Mechanical pan/tilt functionality
- Always recording or event-based recording
- Can act as access client to in-vehicle router
- Optional HDMI adaptor for monitor connectivity
- Rugged IP67 sealed design
Range
| Detection | Recognition | Identification |
|---|---|---|
| 480 yards | 120 yards | 60 yards |
Accessories
- Coiled PoE Cable
- Passive PoE Splitter
- Cigarette to Barrel Cable
- Heat Shrink Tubing
- User Manual
Full Situational Awareness
Not Certain Which NightRide to Choose?
*Table scrolls horizontally
| Model | Resolution | Detection* (in Yards) | Recognition* (in Yards) | Identification* (in Yards) | Field of View | WiFi Frequency to Display | Wired via Ethernet | Remote Control | Mounting | Sample Use Cases |
| NightRide Trailblazer | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Trailblazer w Ethernet | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Trailblazer HighRes 640 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | No | GoPro, on/off vehicle | Daily driving, police, ambulance, armored vehicles, offroading, utility, security, aircraft, helicopter, boating, firefighting |
| NightRide Sentinel | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |
| NightRide Sentinel 640-13 | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Hardwired Remote Control Pan | Permanent on LightBar or Vehicle Roof | Public safety, security, remote surveillance |

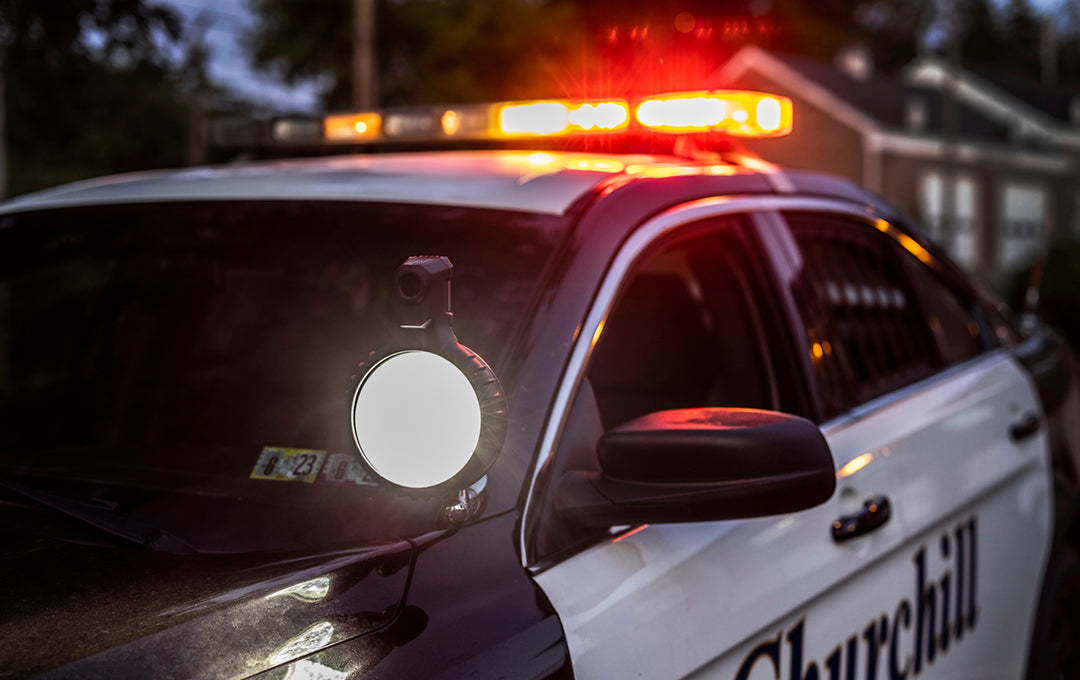

| NightRide PRO-SL (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | No | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide PRO-SL w Ethernet (Ring or Cableless) | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide PRO-SL 640 (Ring or Cableless) | High | 660 | 180 | 90 | 28⁰ | 5 Ghz | Yes | Manual Pan/Tilt | Permanent on Police Spotlight | Police patrol cars |
| NightRide 360 Classic 384-13 | Standard | 480 | 120 | 60 | 28⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 Classic 384-19 | Standard | 660 | 180 | 90 | 19⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 Classic Telephoto 384-35 | Standard | 1200 | 330 | 165 | 10⁰ | 2.4 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 High Res - 640-19/Plus 640-19 | High | 960 | 240 | 120 | 23⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
| NightRide 360 High Res Telephoto 640-35/Plus 640-35 | High | 1750 | 440 | 220 | 12⁰ | 5 Ghz | Yes | Wireless Remote Control Pan/Tilt | Magnetic on Roof | Hunting, farming, ranching, search & rescue, SWAT, surveillance, wildlife control, emergency management |
